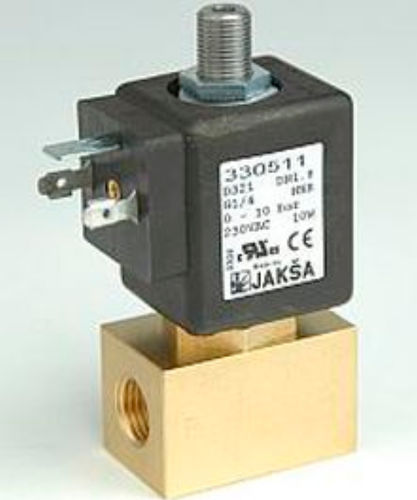

Direct-operated solenoid valve D320 series
3-wayNCwater

direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
Add to favorites
Compare this product


Characteristics

Control
direct-operated
Ports/positions
3-way
Function
NC
Medium
water, air
Body
PTFE, brass, IP65
Other characteristics
plug
Temperature

Max.: 130 °C (266 °F)

Min.: -10 °C (14 °F)

Pressure

Max.: 16 bar (232.1 psi)

Min.: 0 bar (0 psi)

DN

0.25 in

Voltage

Max.: 230 V

Min.: 24 V

Description

Internal parts: stainless steel Seals: NBR, EPDM, FPM Fluid temperature: -10°C to +90°C (NBR); +130°C (EPDM, FPM, PTFE) Ambient temperature: +55°C max Viscosity: 21 mm2/s max. Response time: 10 to 20 ms Voltage: 230, 115, 48, 24 V AC / 24, 12 V DC Duty cycle: continuous (ED100%) Cycling rate: max 1000 cycles/min Electrical protection: IP65 (with plug to ISO 6952 / ISO 4400) Long term use in humid environment requires the use of sealing sets.
