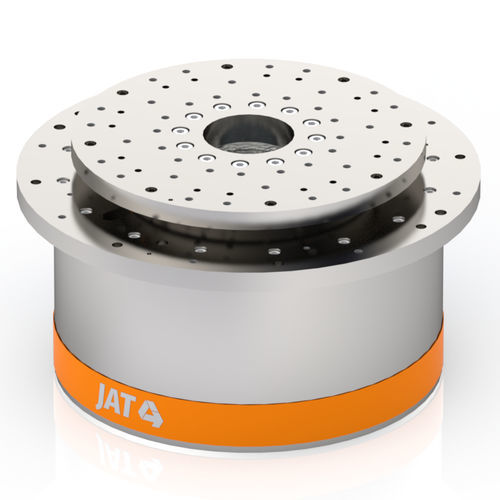

Modular rotary table HRT-290 series

compactservo-drivendirect-drive

The HRT-290 rotational table from the portfolio of the modular rotary table system is designed as a complete unit ready for connection. The rotational table is delivered with cables, precisely matched drive components, such as servo motors and amplifiers. The rotational table integrates a torque motor as a direct drive, a rolling bearing and an incremental measuring system as a standard. The fixed centre opening can be used for conducting pipes and facilitates the installation. Various options are available, e.g. various field bus interfaces and cable lengths. General Data: ✓ Compact design ✓ Torque motor as a direct drive ✓ Integrated incremental encoder (optional sine/cosine, absolute) ✓ Options: Various bearings, holding brakes, various cable outlets and lengths ✓ Available as a complete system including a servo amplifier with a suitable fieldbus interface Technical Data: ✓ Max. DC link voltage 560 VDC ✓ Peak torque up to 430 Nm ✓ Rated torque up to 80 Nm ✓ Repeatability of ±0,35 arcsec
