Visual quality control system AuraVCS

Overview
The AuraVCS is a full-carcass side-vision pork grading system (VCS 2000) designed to automate and standardize pork carcass grading on high-speed slaughter lines, delivering objective measurements for lean meat percentage, back fat thickness and primal weight.

Key benefits

• Improve quality and consistency of pork carcass grading
• Increase production efficiency on high-throughput lines
• Support regulatory and market compliance (EUROP approved)
• Automatic gender detection for process control
• Continuous data collection for traceability and benchmarking

Technology and functionality

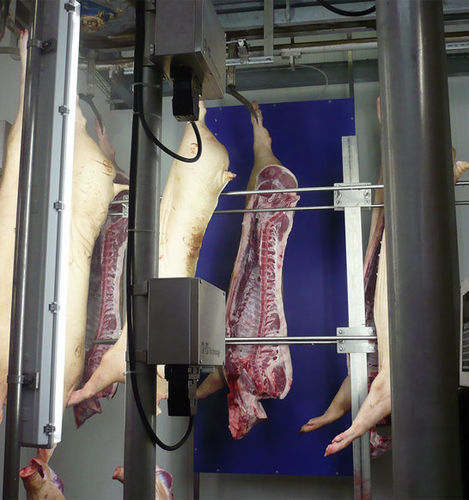

The system employs patented high-speed imaging from two independent camera stations to capture ham profile and the bone side of the split carcass. Image analysis provides color metrics and predictions for lean meat %, back fat thickness and main primal weight, enabling fast, objective and repeatable assessments that reduce grading variability.

Traceability and data
AuraVCS continuously records imaging and measurement data to support traceability, supplier monitoring and data-driven operational decisions. Collected data enable benchmarking, price confirmation and process optimization across batches and suppliers.

Approvals and markets
The AuraVCS is EUROP-approved and is widely used in multiple markets, including Korea. Typical installation is at the end of the slaughter line to provide reliable quality predictions and support food-safety compliance required for international trade.

Optional and additional features
An optional yield-prediction add-on estimates primal and total carcass yields, providing enhanced insight into production value for planning and optimization.

Versions

• Continuous - for slaughter lines processing up to 850 animals per hour

Technical specifications

• Model: AuraVCS (VCS 2000)
• Product type: Full-carcass side-vision pork grading system
• Imaging: Patented high-speed imaging
• Camera stations: Two independent stations (ham profile and bone side)
• Measurements/predictions: Lean meat %, back fat thickness, main primal weight; color analysis
• Automatic features: Automatic gender detection
• Approvals: EUROP-approved; widely deployed (e.g. Korea)
• Versions: Continuous variant up to 850 animals/hour
• Optional add-on: Yield prediction (primal and total carcass yields)
• Data: Continuous data collection for traceability, supplier benchmarking and process control
• Typical installation: End of slaughter line for final grading and compliance monitoring
