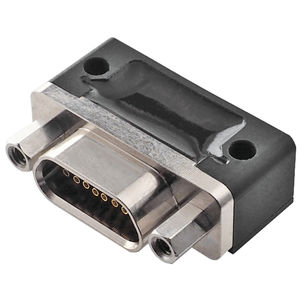

Micro-D connector MDJxxP-W-xxLxxx-T-x

datainsulatedplastic

Plastic-Shell Micro-D Sub Connector with Cable Lightweight, compact, and low-profile design ideal for space-saving and precision electronic devices. Features 1.27 mm pitch for high-density connections, with selectable cable types to meet your specifications. The plastic shell achieves both weight reduction and cost efficiency while ensuring reliability and performance. Perfect for high-reliability, compact wiring designs. Wire specifications: - Wire P/N: W, Standard: UL1513(105°C), Insulating: ETFE, Conductor: Copper, Sn Plating, Temperature Range: -55 to +150°C, Voltage Rating: 600V, Applications: Equipment wiring - Wire P/N: W04 (Made to order), Standard: MIL-W-16878/04 NEMA HP3, UL1213, Insulating: PTFE, Conductor: Copper, Ag Plating, Temperature Range: -60 to +200°C - Wire P/N: W11, Standard: MIL-W-22759/11, Insulating: PTFE, Conductor: Copper, Ag Plating, Temperature Range: -55 to +200°C, Applications: Aerospace equipment - Wire P/N: W33 (Made to order), Standard: MIL-W-22759/33, Insulating: Cross-linked modified ETFE, Conductor: High-strength Copper Alloy, Ag Plating, Temperature Range: -60 to +200°C Note: W (UL1513(105°C)) is the most cost-effective type. Regarding operating temperature: The table above shows the specifications for the wire alone. Please note that the operating temperature of the connector is -55 to +125°C. - Micro-D connector with insulated wire - Plastic shell type - Plug - Micro Dsub connector with cable - Multiple pin counts available (9, 15, 21, 25, 31, 37, 51) - Wire color code: Black, Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White - Wire types: ETFE, PTFE, Cross-linked modified ETFE - Voltage rating: 600V - Operating temperature (connector): -55 to +125°C - Applications: Equipment wiring, Aerospace equipment
