Data connector MDJxxR-W-xxLxxx-T-x

micro-Dplasticwith cable

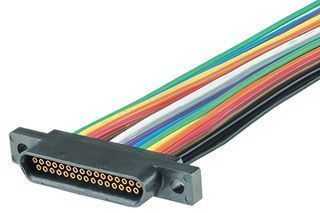

Micro-D connector with Insulated Wire Plastic Shell type Receptacle Micro Dsub connector with cable. A plastic shell is used. How to order Code - Color 1 - Black 2 - Brown 3 - Red 4 - Orange 5 - Yellow 6 - Green 7 - Blue 8 - Purple 9 - Gray 0 - White *1 Please refer to electric wire specification table below. *2 W04 and W33 are made to order. *3 Other lengths can also be specified. *4 "Code" selected from the types of "Mount Hardware" such as screws. Other color is also available. P/N - Number of Pins - A - B - C - D - K MDJ9R-W - 9 - 19.74/0.777" - 14.35/0.565" - 9.4/0.37" - 10.14/0.399" - 5.3/0.209" MDJ15R-W - 15 - 23.55/0.927" - 18.16/0.715" - 13.28/0.523" - 13.95/0.549" MDJ21R-W - 21 - 27.36/1.085" - 21.97/0.865" - 17.03/0.67" - 17.76/0.699" MDJ25R-W - 25 - 29.9/1.177" - 24.51/0.965" - 19.57/0.77" - 20.3/0.799" MDJ31R-W - 31 - 33.7/1.327" - 28.32/1.115" - 23.38/0.92" - 24.11/0.949" MDJ37R-W - 37 - 37.52/1.477" - 32.13/1.265" - 27.22/1.072" - 27.92/1.099" MDJ51R-W - 51 - 36.2/1.425" - 30.86/1.215" - 25.71/1.012" - 26.65/1.049" - 6.3/0.248" Other numbers of pins are made to order. Wire specifications Wire P/N - Standard - Insulating - Conductor - Temperature Range - Voltage Rating - Applications W - UL1513(105°C ) - ETFE - Copper, Sn Plating - -55 to +150°C - 600V - Equipment wiring W04 (Made to order) - MIL-W-16878/04 NEMA HP3,UL1213 - PTFE - Copper, Ag Plating - -60 to +200°C W11 - MIL-W-22759/11 - PTFE - Copper, Ag Plating - -55 to +200°C - Aerospace equipment W33 (Made to order) - MIL-W-22759/33 - Cross-linked modified ETFE - High-strength Copper Alloy, Ag Plating - -60 to +200°C W（UL1513(105°C )）is the most cost-effective type. Regarding operating temperature: The table above shows the specifications for the wire alone. Please note that the operating temperature of the connector is -55 to +125°C. Micro-D connector with insulated wire Plastic shell type Receptacle Available in various pin counts (9, 15, 21, 25, 31, 37, 51) Wire color code available (10 colors) Wire specifications: ETFE, PTFE, Cross-linked modified ETFE insulation; copper or high-strength copper alloy conductor; temperature range -55°C to +200°C (wire), -55°C to +125°C (connector); voltage rating 600V Custom lengths and colors available (made to order)
