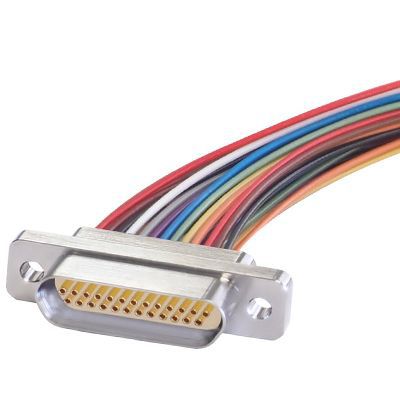

Data connector VCMDS15R-AL-26L1000-TE

micro-Drectangularinsulated

Micro-D connector with insulated wire designed for vacuum environments. This receptacle is made to order and features a durable metal shell made from either aluminum or SUS304. The insulator is crafted from PEEK, and the contact pins are made from copper alloy with gold plating over nickel. Specifications: - Insulation Resistance: 1000MΩ min - Dielectric Withstanding Voltage: AC600Vrms - Current Rating: 1A at 25°C - Pitch: 1.27mm/0.050" - Temperature Range: -55 to +150°C Materials: - Shell: Aluminum or SUS304 - Insulator: PEEK - Contact pins: Copper Alloy, Au plating over Ni Number of Pins and Dimensions: - 9 pins: A: 19.94/0.783", B: 14.35/0.565", C: 10.11/0.398", D: 9.91/0.390" - 15 pins: A: 23.75/0.935", B: 18.16/0.715", C: 13.92/0.548", D: 13.72/0.540" - 21 pins: A: 27.56/1.085", B: 21.97/0.865", C: 17.73/0.698", D: 17.53/0.690" - 25 pins: A: 30.01/1.181", B: 24.51/0.965", C: 20.27/0.798", D: 20.07/0.790" - 31 pins: A: 33.91/1.335", B: 28.32/1.115", C: 24.08/0.948", D: 23.88/0.940" - 37 pins: A: 37.72/1.485", B: 32.13/1.265", C: 27.88/1.098", D: 27.69/1.090" Additional Features: - PTFE-coated, Ag plated copper wire available in 10 colors, with customization options. - Custom lengths available upon request.
