Diesel engine telehandler 540-170
long-reachsmall turning radiuscompact

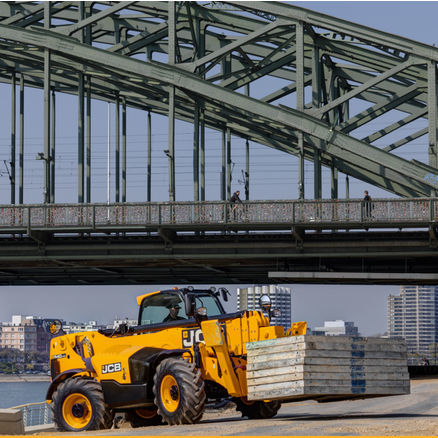

Diesel engine telehandler - 540-170 - JCB - long-reach / small turning radius / compact
Diesel engine telehandler - 540-170 - JCB - long-reach / small turning radius / compact
Diesel engine telehandler - 540-170 - JCB - long-reach / small turning radius / compact - image - 2
Diesel engine telehandler - 540-170 - JCB - long-reach / small turning radius / compact - image - 3
Add to favorites
Compare this product

Characteristics

Engine type
diesel engine
Other characteristics
compact, high-performance, manoeuvrable, high payload, long-reach, small turning radius
Application domain
construction
Lifting capacity

4,000 kg
(8,818.5 lb)

Lifting height

16.7 m
(54'09" )

Description

Overview

Performance & Engine
  • JCB Dieselmax Stage V engine — 55 kW (75 HP) delivering high torque at low revs for responsive operation and fuel efficiency.
  • Combined DPF/DOC aftertreatment achieves Stage V emissions without DEF injection, simplifying service and operation.
  • Industry-leading low 1000‑hour servicing costs and ground-level daily checks reduce downtime and ownership costs.


Boom & Handling
  • Smart 4-piece boom design with hydraulic ram and chains for proportional extension/retraction in one smooth movement.
  • Max lift height 16.7 m and max reach 12.5 m with rated capacity up to 4,000 kg; patented Adaptive Load Control for stable handling at height.
  • Compact wheelbase, large steering lock angles and three steer modes for exceptional manoeuvrability on confined sites.


Telematics & Service
  • JCB LiveLink telematics for remote fleet monitoring: hours, fuel consumption, service alerts and DPF regeneration notifications.
  • Enables preventive maintenance planning and maximises machine uptime.


Safety & Visibility
  • Hi‑Viz design, low boom profile and pivot point for improved rear visibility.
  • Patented load control, hose‑burst check valves and optional rear camera/radar improve site safety.
  • Full set of mirrors and operator indicators enhance compliance with site safety procedures.


Applications
  • Material handling and lifting on construction sites
  • Plant hire fleets and rental operators
  • Maintenance, infrastructure works and multipurpose site tasks


Technical specifications
  • Max lift height: 16.7 m
  • Rated capacity: 4,000 kg
  • Engine power: 55 kW (75 HP)
  • Max reach: 12.5 m
  • Travel speed: 29 km/h
  • Operating weight: 12,060 kg
