Diesel engine telehandler 541-70

dieselcompactmanoeuvrable

Overview

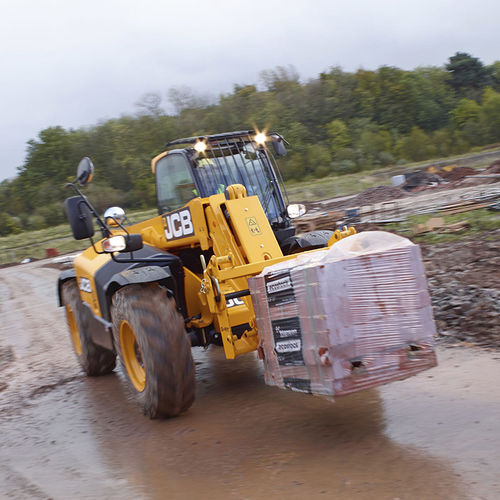

The JCB 541-70 is a construction telehandler designed to deliver productive lifting and material handling on a wide range of sites. It combines a Dieselmax Stage V engine, class-leading hydraulics and compact manoeuvrability to optimise on-site operations.

Engine and emissions
Equipped with a JCB Dieselmax engine compliant with Stage V. An integrated diesel particulate filter (DPF) and DOC after-treatment package meet Stage V requirements without the need for DEF injection. Automatic DPF regeneration reduces operator intervention and helps maintain productivity.

Productivity

• JCB hydraulics deliver fast cycle times for efficient lifting, extension and push operations.
• Compact wheelbase, large steering lock angles and three steering modes improve manoeuvrability in confined spaces.
• Engine power and torque delivered at low revs provide responsive control under load.

Ownership and fleet management

• JCB LiveLink telematics enables remote monitoring of machine hours, fuel consumption, service alerts and diagnostics.
• LiveLink supports monitoring of DPF regeneration, idle time, engine utilisation and location to optimise uptime and operating costs.

Safety

• Load control system and chassis roll-corrector enhance stability and safe load placement.
• Hose burst check valves protect the operator and nearby personnel in the event of hydraulic failure.
• Low boom profile, integrated boom mounting and comprehensive mirrors improve visibility; optional rear camera and pulse radar available for additional site safety.

Durability and structure

• Inverted U-section one-piece welded boom with nose plate reduces weak points and increases stiffness.
• Boom mounted low in a monocoque chassis for improved structural rigidity and improved right/rear visibility.
• Rigorous test programme including extended chassis and boom endurance tests to validate component durability.

Technical specifications

• Maximum lift height: 7 m
• Maximum lift capacity: 4,100 kg
• Maximum engine power: 81 kW
• Maximum reach: 3.7 m
• Travel speed: 33 kph
• Operating weight: 7,850 kg
