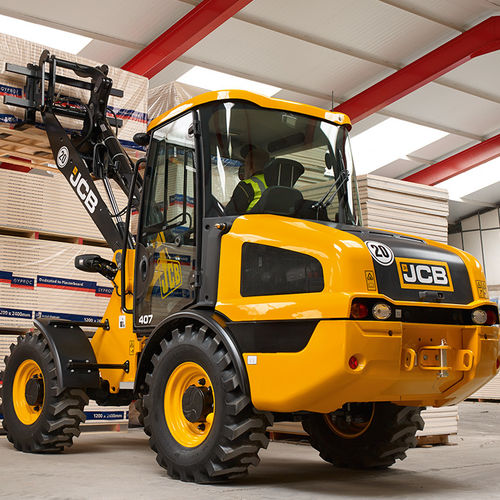

Wheeled loader 407

articulatedcompactoutdoor

Overview
JCB has collaborated with Kohler to develop a Stage V engine for compact wheel loaders delivering high torque and power at low revs. Combined with articulated steering and modern design and manufacturing, the JCB 407 is engineered to reduce operator workload while offering versatile performance.

Productive performance

• JCB Diesel by Kohler Stage V engine.
• High-flow hydraulic option for enhanced loader front-end performance.
• High-speed option providing top speeds up to 35 km/h.
• Hydrostatic drive for easy, intuitive operation.

Quality and reliability

• Heavy-duty central articulation with ±10° oscillation.
• Recessed rear lights protected within the solid counterweight.
• Hydraulic hoses routed and protected away from pinch points.
• State-of-the-art manufacturing with premium components.

Comfort and usability

• Next-generation cab with improved access and operator ergonomics.
• Tilt-and-telescopic steering column for adjustable driving position.
• Soft-grip steering wheel and central dashboard LCD for clear operating information.
• Excellent all-round visibility from the operator position.

Maintenance

• Large one-piece bonnet for easy service access.
• DPF positioned and protected under the bonnet for accessible maintenance.
• Cabin air filter and electrical fuses accessible from ground level.
• Battery located in a lockable, weatherproof compartment for safe access.

Safety

• Optimised grab handles and steps providing three-point contact.
• Electronic quickhitch lock to prevent accidental attachment release.
• Immobiliser option available to reduce theft risk.
• DPF secured and covered under the bonnet.

Technical specifications

• Payload: 1,633 kg
• Bucket capacity: 1.0 m³
• Max engine power: 48 kW
• Power type: Diesel
• Rated tipping load (articulated): 3,265 kg
• Operating weight: 5,097 kg
