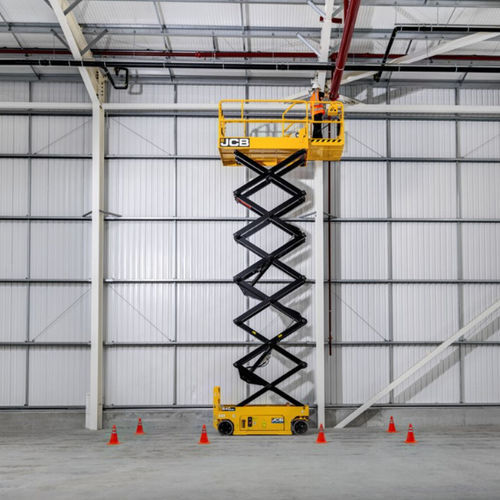

Mobile scissor lift S4046E

wheeledself-propelledbattery-powered

Overview
The JCB S4046E is a 100% electric scissor lift engineered for indoor access applications where emissions-free, quiet operation and compact manoeuvrability are required. Designed in-house, the S4046E combines standard industry components for fleet integration with features that simplify operation and maintenance.

Key features

• Fully electric drive system for zero on-site emissions.
• Control cradle usable from all sides of the platform and from ground level for flexible operation.
• Waterproof cover on platform power outlet to protect sockets.
• Easy-view battery charge indicator and user-friendly spring clips for folding platform rails.

Safety features

• Guardrails and overload protection to meet industry safety standards.
• Emergency stop at platform and ground controls.
• Hole/ground protection system that prevents lift until safety devices are deployed.
• Proportional lift and drive controls with creep mode for precise positioning.

Operation & ergonomics

• Ergonomic control unit designed for both left- and right-handed operators.
• Automotive-style pedal for extension release for intuitive use.
• Large, glove-friendly battery master switch and handles for safe access.
• Platform power supply for direct connection of electrical tools; batteries supplied (Trojan) for reliable operation.

Construction & reliability

• Full pivot boss design on the scissor pack, reinforced welds and motor protection plates based on JCB engineering standards.
• Industry-standard components for straightforward servicing and fleet compatibility.

Productivity & performance

• Generous platform dimensions to carry tools and materials, reducing trips and saving time.
• Robust electric drive unit designed for dependable operation with low maintenance.

Service & support

• Access to JCB dealer network, parts availability and technical support.
• Optional LiveLink telematics for fleet monitoring and remote management.

Specifications

• Max working height: 13.9 m
• Platform height: 11.9 m
• Platform capacity: 320 kg
• Max persons on platform (indoor): 2
• Suitable for outdoor use: No
• Operating weight: 3,070 kg
