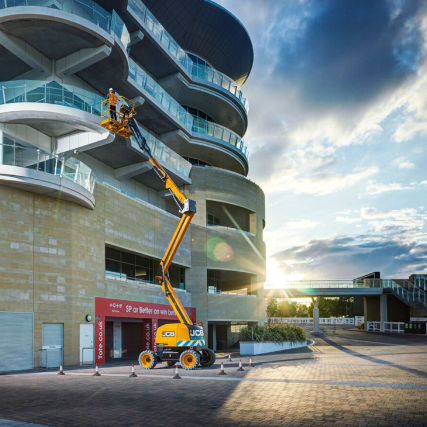

Mobile articulated boom lift A45E

wheeledwheel-mountedself-propelled

Overview
Part of the E-TECH range, the JCB A45E is an articulated boom lift with an all-electric powertrain delivering zero exhaust emissions. The A45E increases platform capacity to 300 kg (previously 250 kg) and is designed for both indoor and outdoor use while maintaining control and manoeuvrability in confined spaces.

Key features

• Platform safe working load: 300 kg (660 lb) unrestricted.
• Max. working height: 15.84 m; platform height: 13.84 m.
• Max. outreach: 7.48 m.
• Electric powertrain with regenerative wheel motors that recover energy to the machine power bank.
• 4x4 traction for improved positioning and site performance.
• Function speed control, platform-operated controls and touchscreen base display; ergonomic joystick for intuitive operation.
• Triple-entry basket rail for easier access and egress.

Durability

• Resilient paint protection and rigid canopy structure.
• Solid cast counterweight for impact resistance and extended service life.
• Ground-up JCB structural design validated by physical and simulation testing.

Monitoring & maintenance

• On-screen diagnostics for rapid overview of machine systems.
• JCB LiveLink telematics for remote fleet monitoring and management.
• BOSCH control system to simplify servicing and reduce retraining requirements.

Safety

• Secondary guarding system and slew lock to protect operators from overhead crush hazards.
• Puncture-proof tyres and finger-trap protection.
• Emergency override system.
• Oscillating axle and tilt sensor for safe use on gradients.
• Load-monitoring sensors to ensure basket loads remain within safe margins.

Technical specifications

• Model: A45E
• Manufacturer: JCB
• Max. working height: 15.84 m
• Max. outreach: 7.48 m
• Platform height: 13.84 m
• Platform safe working load / capacity: 300 kg (660 lb) unrestricted
• Max. platform occupancy: 2 persons
• Power type: Electric (E-TECH), regenerative wheel motors
• Boom type: Articulated
