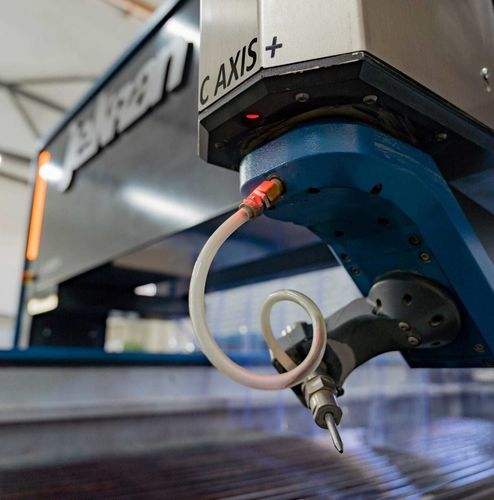

Abrasive water-jet cutting machine 5-Axis

for ceramicsfor composite materialsfor plastics

Overview

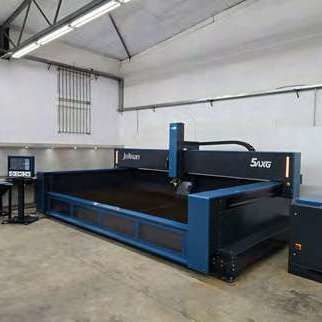

Advanced 5-axis waterjet cutting systems designed for high-precision fabrication across metals, composites, ceramics, stone and plastics. Models 4021-5AXG and 6021-5AXG provide large cutting areas and integrated sensing to support automated, repeatable production.

Key Features

• Nozzle design that eliminates external piping for simplified maintenance and cleaner machine layout.
• Integrated camera and probing systems that provide real-time sensing and dynamic path adjustments.
• Material versatility: configured for metals, composites, ceramics, stone, glass and plastics for industrial production environments.

Technical Specifications

• Model 4021-5AXG — Cutting area: 4100 x 2100 mm; X/Y/Z travel: 4100 / 2100 / 200 mm; Max speed: 25 m/min; Linear accuracy: +/- 0.02 mm; Repeatability: +/- 0.02 mm; Pump options: Jekran direct-drive 22 kW / 30 kW (up to 4,000 bar / 58,000 psi); Footprint example: 8.5 x 3.4 m.
• Model 6021-5AXG — Cutting area: 6100 x 2100 mm; X/Y/Z travel: 6100 / 2100 / 200 mm; Max speed: 25 m/min; Linear accuracy: +/- 0.02 mm; Repeatability: +/- 0.02 mm; Pump options: Jekran direct-drive 22 kW / 30 kW (up to 4,000 bar / 58,000 psi); Footprint example: 10.5 x 3.4 m.

Pump Technical Specifications

• Model 22 Direct Drive — Electric servo motor power: 30 HP (22 kW); Efficiency: ~90%; Output pressure: 58,000 psi (4,000 bar); Orifice & flow rate: 0.011" / 0.82 gpm (0.3 mm / 3.1 lpm); Footprint LxWxH: 43.7" x 31" x 42" (1110 x 800 x 1065 mm).
• Model 30 Direct Drive — Electric servo motor power: 40 HP (30 kW); Efficiency: ~90%; Output pressure: 58,000 psi (4,000 bar); Orifice & flow rate: 0.014" / 1.1 gpm (0.35 mm / 4.2 lpm); Footprint LxWxH: 43.7" x 31" x 42" (1110 x 800 x 1065 mm).

Additional notes
Footprint dimensions are guidelines: high-pressure pump, bulk hopper, abrasive removal structure and control console can be positioned to suit the customer's workshop layout and access requirements.

Product family / Technical characteristics

• Product family: 5-Axis cutting systems by Jekran.
• Standard models: 4021-5AXG (4100 x 2100 mm) and 6021-5AXG (6100 x 2100 mm); custom configurations available.
• Integrated camera and probing for automated alignment and adaptive cutting.
• Pump options: Jekran direct-drive pumps (22 kW / 30 kW) delivering up to 4,000 bar (58,000 psi).
• Typical applications: aerospace components, architectural fabrication, industrial parts prototyping and production.
