Abrasive water-jet cutting machine WJFB

for composite materialsfor aluminumfor stainless steel

Overview

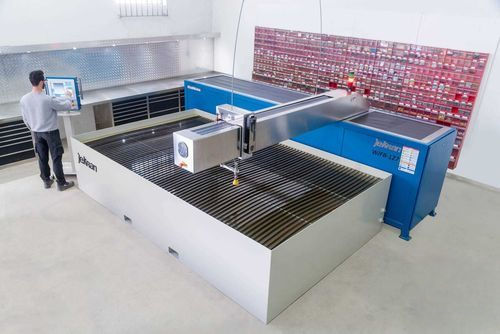

The WJFB is an industrial abrasive waterjet cutting machine featuring a dynamic fly-bridge architecture. The moving bridge traverses the X and Y axes while the table remains open, enabling large-format cuts with consistent precision. Engineered for fabrication environments, the WJFB supports metals, stone, glass and advanced composites without thermal distortion. Compact packing and container-ready dimensions simplify transport and site deployment.

Key features

• Moving fly-bridge design for improved accessibility to oversized and irregular parts.
• Open-bed layout for loading large sheets and plates from overhead or sides.
• High-precision linear motion delivering ±0.03 mm linear accuracy and ±0.02 mm repeatability.
• Max traverse speed 12 m/min for efficient large-format processing.
• Compatible with Jekran direct-drive pumps (22 kW / 30 kW) up to ~4,000 bar.
• Suits metals, stone, glass, composites — no heat-affected zone from cutting.

Design / Use Cases
Designed for industrial-scale fabrication and custom workshops: the WJFB handles thick plate cutting, nested parts from large sheets, architectural stone panels and delicate composite or glass components where thermal-free cutting is required.

Technical specifications

• Model name: WJFB (WaterJet Fly Bridge).
• Available nominal table sizes: 44 (4ft x 4ft), 85 (8ft x 5ft), 125 (12ft x 5ft), 127 (12ft x 7ft).
• X-axis travel: 1,220 mm / 2,490 mm / 3,658 mm (depends on model).
• Y-axis travel: 1,220 mm / 1,500 mm / 2,130 mm (depends on model).
• Z-axis travel: 170 mm (all models).
• Max. traverse speed: 12 m/min.
• Linear accuracy: ±0.03 mm. Repeatability: ±0.02 mm.
• Footprint examples (varies with pump/hopper arrangement): 2.6 x 2.05 m; 3.28 x 2.8 m; 4.7 x 3.5 m.

Pump technical specifications

• Model 22 Direct Drive — Electric servo motor power: 22 kW (30 HP); Efficiency ≥ 90%; Output pressure: ~58,000 psi (4,000 bar); Orifice & flow: 0.011" / 0.82 gpm (0.3 mm / 3.1 lpm); Footprint: 1,110 x 800 x 1,065 mm.
• Model 30 Direct Drive — Electric servo motor power: 30 kW (40 HP); Efficiency ≥ 90%; Output pressure: ~58,000 psi (4,000 bar); Orifice & flow: 0.014" / 1.1 gpm (0.35 mm / 4.2 lpm); Footprint: 1,110 x 800 x 1,065 mm.

Applications & Benefits

• Large-format industrial fabrication and custom metalworking.
• Thermal-free cutting preserves microstructure of metals and integrity of composites/glass.
• Flexible configuration and compact shipment options for rapid site installation.

Additional technical data

• Standard pump options: Jekran Pump model 22 (22 kW) and 30 (30 kW), direct-drive.
• Orifice / flow examples: 0.011" (0.3 mm) / 3.1 lpm and 0.014" (0.35 mm) / 4.2 lpm.
• Typical cutting materials: steel, stainless steel, aluminum, stone, glass, carbon fiber and advanced composites.
