Overview

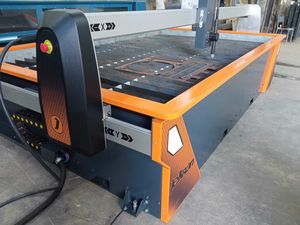

The Combo is a hybrid cutting system integrating an abrasive waterjet (dual-nozzle) and a plasma head on a single gantry. It provides flexible processing for metals, alloys, composites and layered materials with selectable or simultaneous operation of both cutting methods. The machine is engineered for repeatable precision, functional adaptability and integration into industrial fabrication workflows.

Key Features

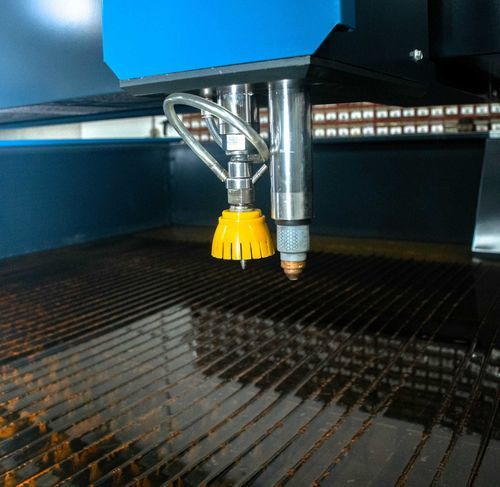

• Hybrid dual-mode cutting: waterjet and plasma heads mounted on one gantry with quick transition between modes to match material and cycle requirements.

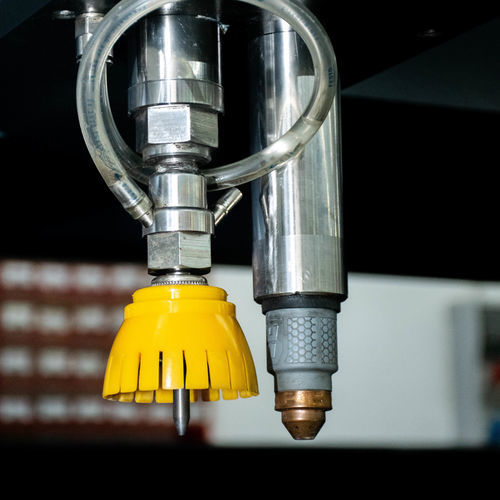

• Independent nozzle control: dedicated control for each head enables selective or concurrent use, supporting rough plasma cutting and fine waterjet detailing within the same program.
• Adaptive material intelligence: sensors and control algorithms measure material type/thickness and adjust cutting parameters in real time to optimize quality and productivity.

Models & Primary Table
Model | Models available | X-axis travel (mm) | Y-axis travel (mm) | Z-axis travel (mm) | Max. speed (m/min) | Linear Accuracy (mm) | Repeatability (mm) | Pump/Unit/Spindle Motor | Footprint (m)*
Combo | 4021-Combo | 4100 | 2100 | 200 | 25 | +/- 0.03 | +/- 0.02 | Jekran Pump model 22/30 22/30kW - 3 phase - 3,800bar Hypertherm or GYS | 8.5x3.4
Combo | 6021-Combo | 6100 | 2100 | 200 | 25 | +/- 0.03 | +/- 0.02 | Jekran Pump model 22/30 22/30kW - 3 phase - 3,800bar Hypertherm or GYS | 10.5x3.4

Pump / Drive Table (pump models & specs)
Model 22 Direct Drive | Model 30 Direct Drive
Electric Servo Motor Power | 30 HP (22 kW) | 40 HP (30 kW)
Efficiency | 2% | 2%
Output Pressure (PSI) | 58,000 psi | 58,000 psi
Output Pressure (Bar) | 4000 Bar | 4000 Bar
Orifice & Flow Rate | 0.011" / 0.82 gpm (0.3 mm / 3.1 lpm) | 0.014" / 1.1 gpm (0.35 mm / 4.2 lpm)
Footprint LxWxH | 43.7" x 31" x 42" (1110 mm x 800 mm x 1065 mm) | 43.7" x 31" x 42" (1110 mm x 800 mm x 1065 mm)

Notes
*Footprint dimensions are guideline only. HP pump, bulk hopper, garnet removal structure and console can be positioned to suit customer workspace.

Technical specifications

• Product: Combo dual-nozzle waterjet + plasma cutting system
• Models available: 4021-Combo, 6021-Combo
• X-axis travel: 4100 mm (4021), 6100 mm (6021)
• Y-axis travel: 2100 mm
• Z-axis travel: 200 mm
• Max. speed: 25 m/min
• Linear accuracy: ±0.03 mm
• Repeatability: ±0.02 mm
• Pump options: Jekran Pump model 22 (22 kW / 30 HP) or model 30 (30 kW / 40 HP) direct drive
• Pump output: up to 58,000 psi / 4,000 bar
• Waterjet orifice & flow: 0.011" / 0.82 gpm (0.3 mm / 3.1 lpm) and 0.014" / 1.1 gpm (0.35 mm / 4.2 lpm)
• Plasma units: Hypertherm or GYS compatible
• Independent nozzle control: each head with dedicated control for simultaneous or selective operation
• Adaptive sensors: real-time material/thickness analysis and automatic parameter adjustment
• Footprint guideline: 8.5 x 3.4 m (4021) and 10.5 x 3.4 m (6021) (pump/hopper/console placement flexible)
• Typical pump footprint (unit): 1110 x 800 x 1065 mm (per pump unit reference)
