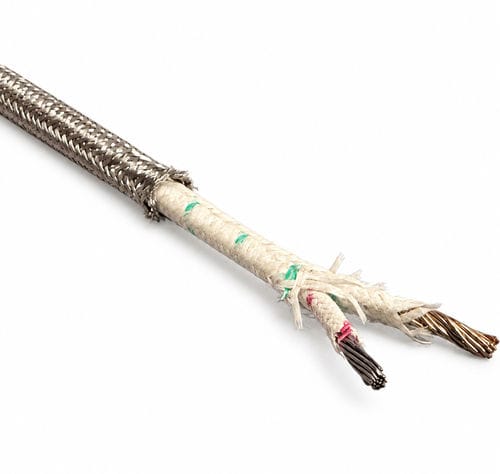

Compensation thermocouple wire 5-0/800-6041

stranded

Description
The FV/FV-M DIN compensation cable 2 × 1.3 mm² for Type K thermocouples is designed to extend and connect a Type K thermocouple to measurement, control or regulation instruments. It features flexible conductors, FV/FV insulation (individual and overall) and a braided outer shield to provide thermal resistance and mechanical protection in industrial environments.

Features of the compensation cable

• Product: compensation/extension cable.
• Compatible thermocouple: Type K.
• Number of conductors: 2.
• Conductor cross-section: 1.3 mm² per conductor.
• Configuration: 2 × 1.3 mm².
• Insulation: FV/FV (individual and overall).
• Outer protection: braided shield (FV/FV-M DIN).
• Construction reference: FV/FV-M DIN.
• Application: extension and connection of Type K thermocouples.
• Use: industrial temperature measurement and control installations.

Industrial applications

• Connection of Type K thermocouples.
• Furnaces and thermal equipment.
• Industrial machinery.
• Production lines and process plants.
• Electrical cabinets and control panels.
• Recorders and temperature controllers.
• Installations requiring additional mechanical protection.

FV/FV-M construction with braided outer shield
The FV/FV-M construction provides individual and overall insulation with an additional braided outer shield for mechanical protection. This design is intended for industrial environments where cables are subject to wear during installation and operation. Maximum operating temperature depends on the exact insulation composition and process conditions and should be confirmed for each installation.

Main advantages

• Compatibility with Type K thermocouples.
• Two flexible conductors of 1.3 mm² for reliable signal transmission.
• Individual and overall FV/FV insulation.
• Braided outer shield for enhanced mechanical resistance.
• Designed for demanding industrial installations.
• Allows extension of the thermocouple signal to the control instrument.

Additional information
Weight: 3 kg
Dimensions: 50 × 50 × 30 cm

Technical characteristics / specifications

• Cable type: compensation/extension cable for thermocouples.
• Compatible type: K (Type K thermocouple).
• Conductors: 2 flexible conductors.
• Conductor cross-section: 1.3 mm² per conductor.
• Configuration: 2 × 1.3 mm².
• Insulation: FV/FV (individual and overall).
• Outer protection: braided shield (FV/FV-M DIN).
• Construction standard: FV/FV-M DIN.
• Application: extension/connection of thermocouples in industrial installations.
• Declared weight: 3 kg.
• Declared package dimensions: 50 × 50 × 30 cm.
• Stock available (as indicated): 250 units.
• Internal code / reference: 5-0/800.6041.
