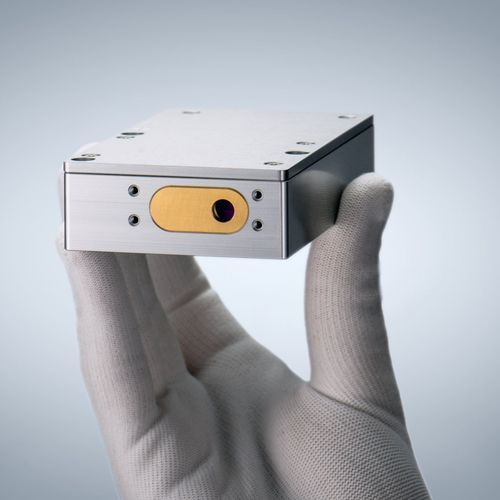

Continuous wave laser diode JenLas®
solid-statefor medical equipmentNd:YVO4

continuous wave laser diode
continuous wave laser diode
Add to favorites
Compare this product


Operational mode
continuous wave
for medical equipment
Other characteristics
power, diode-pumped, Nd:YVO4

2 W, 3 W, 5 W, 8 W


532 nm


Our trusted 532 nm laser sources with up to 8W continuous-wave output power for proven applications in medicine, illumination and signaling Jenoptik has pioneered development and commercialization of diode-pumped thin disk laser technology and has over 30 years experience in the design and fabrication of diode-pumped solid state lasers. With more than 25.000 units installed, our cw-532 nm thin disk lasers are proven in the field for a variety of applications such as ophthalmology, dermatology, veterinary medicine, laser projection and quality control. Operation of our 532 nm thin disk lasers relies on TEC-controlled laser diode pump sources from our in house-fab, Nd:YVO4 gain crystals and TEC-controlled internal frequency doubling LBO crystals. Compared to other solid-state laser technologies, thin disk lasers offer highest electro-optical efficiency, water-less cooling of the gain medium and high beam quality (M² ~ 5) due to suppression of thermal lensing. This enables us to serve applications in the medical field of laser-based-therapy with our proven and highly reliable JenLas® D2.x and JenLas® series. The miniaturized JenLas® 2-8W with its industry-leading, lowest form-factor fits into the palm of your hand and exhibits a rugged, sealed OEM-design for easy integration into your medical laser system.
