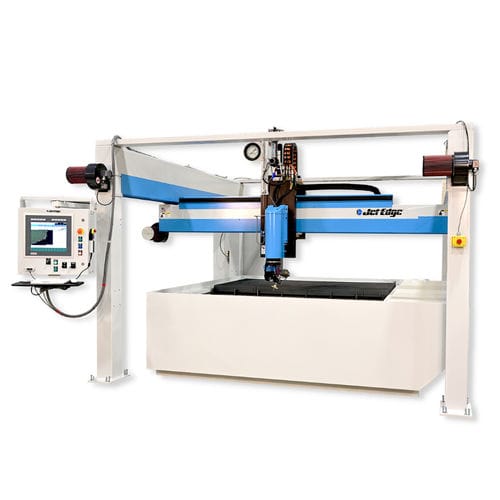

Abrasive water-jet cutting machine EDGE X5-HR

for metalsheet metalCNC

There are many benefits to a High Rail Waterjet Machine. First of all, it opens the work envelope for easier access and the overhead design raises critical components out of the processing environment. The isolated motion system and rigid steel beams make this the most accurate waterjet cutter on the market. Incorporating the Permalign Arrow SL breakthrough 5-axis cutting head technology into your Edge X5-HR system allows you to bevel cut angles to 60° in the hardest materials with a taper-free finish. Aerospace, contract manufacturing and highly specialized applications companies that require accuracy, repeatability and high machine uptime from their abrasive cutting have found their system. Click on the links to learn more about Custom Applications and Custom Configurations. • Easy-access work envelope • Motion components protected from harsh process environment • Features the Permalign Arrow SL for abrasive cutting or the OmniJet Arrow SL for water only cutting delivering higher finish quality, faster cycle times and lower maintenance costs • 5-axis cutting head can cut bevels to 60° and eliminate tapers • Programable Z carriage with servo motor driven 12″ (304 mm) vertical travel height • Multiple Configuration Options including integrated fixtures and lights out cutting • Isolated catch tank for the highest precision • Adjustable pre-loaded anti-backlash recirculating ball screws • Linear bearings, hardened precision ground ways • Protected critical bearing components with labyrinth seals and positive air pressure • Direct-couple, AC brushless servo motors with absolute encoders • Full line of HERO Intensifier Pumps to deliver high pressure water stream
