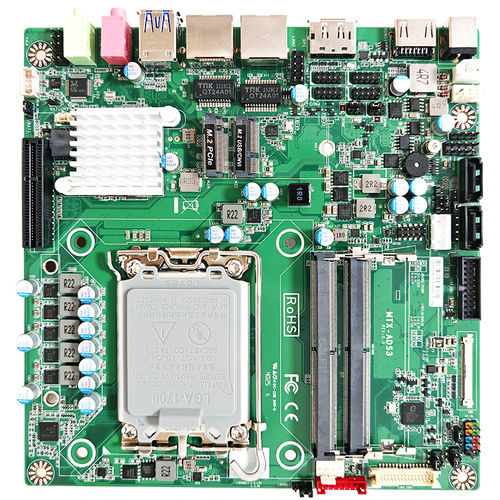

Mini-ITX single-board computer MTX-ADS3 series

Intel® Celeron®Intel® Core i3Intel® Core i5

Product Overview
170 x 170 mm Mini-ITX single board computer supporting 12th/13th/14th Gen Intel® Core™ (i9/i7/i5/i3), Celeron & Pentium LGA1700 socket processors, DDR5 up to 96 GB and up to 3 simultaneous displays.

Features

• Intel® LGA1700 socket processors (Max. 65W TDP)
• Intel® H610 chipset
• 2 x DDR5 SO-DIMM (4800/5600 MT/s), dual channel, up to 96 GB
• Multiple display outputs: HDMI® 2.0, DP1.4, LVDS/eDP, eDP
• 2 x GbE LAN (Realtek® RTL8111H)
• USB: 2 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 5 x USB 2.0 (internal headers and rear)
• Storage: M.2 M-key (2242/2280 PCIe x4), M.2 E-key (2230), 2 x SATA III
• 4 x COM ports (internal headers)
• 1 x PCIe Gen4 x4 expansion slot

Detailed Specifications
SYSTEM
MB FORM FACTOR: Mini-ITX (170 x 170 mm)
CPU: Intel® LGA1700 12th/13th/14th Gen Socket Processor (Max. 65W TDP)
CHIPSET: Intel® H610
MEMORY: 2 x DDR5 SO-DIMM (4800/5600 MT/s), dual channel, up to 96 GB
BIOS: AMI Flash ROM
WAKE ON LAN: Yes
WATCHDOG TIMER: 255 levels
SECURITY: Intel® PTT (integrated fTPM) & TPM 2.0 (dTPM)
RTC BATTERY: Lithium battery
DIMENSION (W x D): 170.0 x 170.0 mm
OS SUPPORT: Windows® 11 (64-bit), Windows® 10 (64-bit), Linux

POWER
POWER REQUIREMENT: DC-in 12–19 V
POWER ON MODE: AT / ATX
CONNECTOR: DC jack

DISPLAY
GPU: Intel® UHD Graphics
LVDS: 1 x LVDS/eDP (LVDS up to 2560 x 1600@60Hz; eDP up to 1920 x 1080@60Hz)
eDP: 1 x eDP 1.4 (up to 5120 x 3200@120Hz)
DP: 1 x DP1.4 (up to 7680 x 4320@60Hz)
HDMI®: 1 x HDMI® 2.0 (up to 4096 x 2160@60Hz)
MULTIPLE DISPLAY: Support up to 3 displays

AUDIO
CODEC: Realtek ALC897
Line-out: 1 x audio jack
MIC-in: 1 x audio jack
AMPLIFIER: 3 W

LAN
ETHERNET: 2 x RJ45 (Realtek® RTL8111H GbE)

USB PORT
2 x USB 3.2 Gen2 (rear), 2 x USB 3.2 Gen1, internal headers for 2 x USB 3.2 and 5 x USB 2.0

SERIAL PORT
COM: Internal headers for 2 x RS-232 and 2 x RS-232/422/485

INTERNAL I/O
GPIO: 8-bit
SMBUS: Yes
FAN: 1 x CPU fan header; 1 x system fan header
FRONT PANEL: HDD LED, Power LED, Power On/Off, Reset
ADDITIONAL: Chassis intrusion, FP_Audio, Inverter, AT mode selection, 4-pin speaker header (for 3W amplifier, PH2.0)

STORAGE
SATA: 2 x SATA III; 1 x SATA power connector

EXPANSION
PCIe: 1 x PCIe Gen4 x4
M.2: 1 x M-key 2242/2280 (PCIe 3.0 x4); 1 x E-key 2230 (CNVi/PCIe x1/USB2.0) (supports Wi‑Fi/BT module)

ENVIRONMENT & CERTIFICATION
SHOCK: 15G, 11 ms duration
VIBRATION: 1 Grms, 5–500 Hz (operation)
OPERATING TEMPERATURE: 0°C to 60°C
STORAGE TEMPERATURE: -20°C to 70°C
OPERATING HUMIDITY: 10–90% @ 40°C, non-condensing
CERTIFICATION: CE / FCC Class A; LVD
ESG DECLARATION: EU RoHS, China RoHS, REACH (option)

Technical specifications

• Model: MTX-ADS3
• Form Factor: Mini-ITX (170 x 170 mm)
• CPU Socket: LGA1700 (12th/13th/14th Gen, up to 65W)
• Chipset: Intel® H610
• Memory: 2 x DDR5 SO-DIMM, up to 96 GB (4800/5600 MT/s)
• Graphics/Display: HDMI 2.0, DP1.4, eDP, LVDS; up to 3 displays
• LAN: 2 x GbE (Realtek® RTL8111H)
• Storage: 2 x SATA III; 1 x M.2 M-key (2242/2280 PCIe3.0 x4); 1 x M.2 E-key (2230)
• Expansion: 1 x PCIe Gen4 x4
• Audio: Realtek ALC897, 3W amplifier
• Power: DC-in 12–19 V, DC jack, AT/ATX
• Operating: 0°C to 60°C; Shock 15G; Vibration 1 Grms
