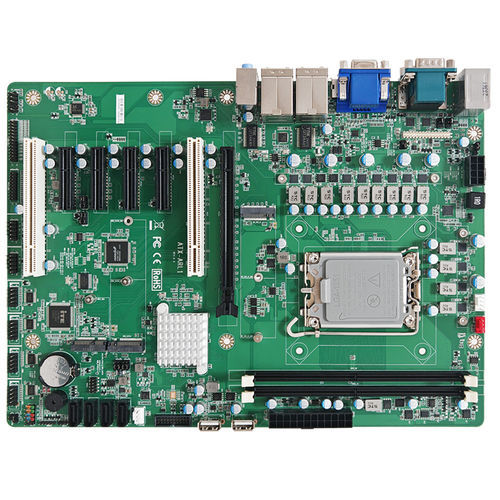

ATX motherboard ATX-ARL1-B860 series
Intel® Core™ UltraIntel® Alder Lake-SIntel® HD

ATX motherboard - ATX-ARL1-B860 series - Jetway Information Co., Ltd. - Intel® Core™ Ultra / Intel® Alder Lake-S / Intel® HD
ATX motherboard - ATX-ARL1-B860 series - Jetway Information Co., Ltd. - Intel® Core™ Ultra / Intel® Alder Lake-S / Intel® HD
ATX motherboard - ATX-ARL1-B860 series - Jetway Information Co., Ltd. - Intel® Core™ Ultra / Intel® Alder Lake-S / Intel® HD - image - 2
ATX motherboard - ATX-ARL1-B860 series - Jetway Information Co., Ltd. - Intel® Core™ Ultra / Intel® Alder Lake-S / Intel® HD - image - 3
ATX motherboard - ATX-ARL1-B860 series - Jetway Information Co., Ltd. - Intel® Core™ Ultra / Intel® Alder Lake-S / Intel® HD - image - 4
Add to favorites
Compare this product
Go to the Jetway Information Co., Ltd. website for more information

Characteristics

Format
ATX
Processor
Intel® Alder Lake-S, Intel® Core™ Ultra
Chipset
Intel® HD
Memory
DDR5 UDIMM, DDR5 SDRAM
Extension slot
M.2, M.2 Key M, M.2 Key E, SATA3, PCI Express, 16x PCI Express
Applications
industrial
Operating system
Linux, Windows 10, Windows 11
Connectivity
2.5 GbE, gigabit Ethernet, USB 2.0, USB 3.0, Ethernet, DisplayPort, PS2, USB 3.2, HDMI, VGA, RS-485, RS-232, RJ45, RS-422

Description

Overview
  • Industrial ATX motherboard designed for Intel® Core™ Ultra (Arrow Lake-S) processors with B860 chipset, supporting high-speed DDR5 memory, multiple displays and extensive industrial I/O and expansion.


Key features
  • Intel® Core™ Ultra (Arrow Lake-S) support with B860 chipset
  • 2 x DDR5 UDIMM 6400MT/s, dual channel, up to 96GB
  • Display outputs: 1 x VGA, 1 x HDMI® 2.0, 1 x DP 2.1 (supports up to 7680x4320@60Hz)
  • Networking: 1 x 2.5GbE (Intel® I226-V), 1 x GbE (Intel® I219-V)
  • I/O: 6 x COM, 6 x USB3.2 Gen1, 6 x USB2.0, 2 x USB2.0 Type-A (vertical)
  • Storage/Expansion: M.2 M-key (2242/2280, SATA), M.2 M-key (2242/2280, NVMe PCIe x4), M.2 E-key (2230, CNVi/PCIe x1+USB2.0)
  • PCI slots: 1 x PCIe x16 (Gen4), 2 x PCIe x4 (Gen3), 2 x PCIe x1 (Gen3), 2 x PCI


Technical specifications
  • SYSTEM — MB FORM FACTOR: ATX
  • SYSTEM — CPU: Intel® LGA1851 Socket Ultra 9/7/5th Gen Processor (Max. TDP 125W)
  • SYSTEM — CHIPSET: Intel® Arrow Lake-S B860
  • SYSTEM — MEMORY: 2 x DDR5 6400MT/s, Dual Channel U-DIMM, up to 96GB
  • SYSTEM — BIOS: UEFI
  • SYSTEM — WAKE ON LAN: Yes
  • SYSTEM — WATCHDOG TIMER: 255 Levels
  • SYSTEM — SECURITY: Intel® PTT (integrated fTPM) & TPM 2.0 (dTPM)
  • SYSTEM — RTC BATTERY: Lithium Battery
  • SYSTEM — DIMENSION (W x D): 305.0 (W) x 220.0 (D) mm (12" x 8.7")
  • SYSTEM — OS SUPPORT: Windows® 11 (64bit), Windows® 10 (64bit), Linux
  • POWER — POWER REQUIREMENT: ATX Power Supply
  • POWER — POWER ON MODE: AT / ATX (Default) Mode
  • POWER — CONNECTOR: 24+8-pin ATX PWR
  • DISPLAY — GPU: Intel® HD Graphics
  • DISPLAY — DP: 1 x DP2.1 (Max Resolution: 7680x4320@60Hz)
  • DISPLAY — HDMI®: 1 x HDMI® 2.0 (Max Resolution: 4096 x 2304@60Hz)
  • DISPLAY — VGA: 1 x VGA (Max Resolution: 1920 x 1080@60Hz)
  • DISPLAY — MULTIPLE DISPLAY: Support 4 Displays
  • AUDIO — CODEC: Realtek ALC897
  • AUDIO — Line-in: 1 x Audio Jack for Line-In
  • AUDIO — Line-out: 1 x Audio Jack for Line-Out
  • AUDIO — MIC-in: 1 x Audio Jack for MIC-In
  • LAN — ETHERNET: 1 x RJ45 for Intel® I226-V 2.5GbE, 1 x RJ45 for Intel® I219-V GbE
  • USB PORT: 4 x USB 3.2 Gen 1 (rear), 2 x USB 2.0 (rear), Internal Header for 2 x USB 3.2 Gen 1, Internal Header for 4 x USB 2.0, Internal USB Type A (Vertical) for 2 x USB 2.0
  • SERIAL PORT — COM: 2 x DB-9 for RS-232/422/485, Internal Header for 4 x RS-232
  • INTERNAL I/O — GPIO: 16 bit GPIO (5V) Co-lay LPT
  • INTERNAL I/O — SMBUS: Yes
  • INTERNAL I/O — FAN: 1 x CPU Fan Header, 2 x System Fan Header
  • FRONT PANEL: HDD Active LED, Power LED, Power On/Off, Reset
  • ADDITIONAL: 1 x Chassis intrusion, 1 x AT/ATX Mode Selection
  • STORAGE — SATA: 4 x SATA III
  • EXPANSION — M.2: 1 x M-key 2242/2280 (SATA interface, Co-lay SATA4), 1 x M-key 2242/2280 (PCIe Gen5 x4) Support NVMe, 1 x E-Key 2230 (USB 2.0/PCIe x1) Support CNVio for Wi‑Fi
  • EXPANSION — PCIe: 1 x PCI-Ex16 (Gen.4) slot, 4 x PCI-Ex4 (Gen.4, PCIE2/PCIE3 Interface: PCI-Ex1) slots, 2 x PCI
  • OTHERs — OTHER: 1 x PS/2
  • ENVIRONMENT & CERTIFICATION — OPERATING TEMPERATURE: 0°C ~ 60°C (32°F ~ 140°F)
  • ENVIRONMENT & CERTIFICATION — STORAGE TEMPERATURE: -20°C ~ 70°C (-4°F ~ 158°F)
  • ENVIRONMENT & CERTIFICATION — OPERATING HUMIDITY: 10 ~ 90% relative humidity, non-condensing
  • ENVIRONMENT & CERTIFICATION — CERTIFICATION: CE/FCC Class A, LVD
  • ENVIRONMENT & CERTIFICATION — ESG DECLARATION: EU RoHS, REACH
