ATX motherboard ATX-ARL1-H810 series
embeddedIntel® Core™ UltraIntel® Alder Lake-S

ATX motherboard - ATX-ARL1-H810 series - Jetway Information Co., Ltd. - embedded / Intel® Core™ Ultra / Intel® Alder Lake-S
ATX motherboard - ATX-ARL1-H810 series - Jetway Information Co., Ltd. - embedded / Intel® Core™ Ultra / Intel® Alder Lake-S

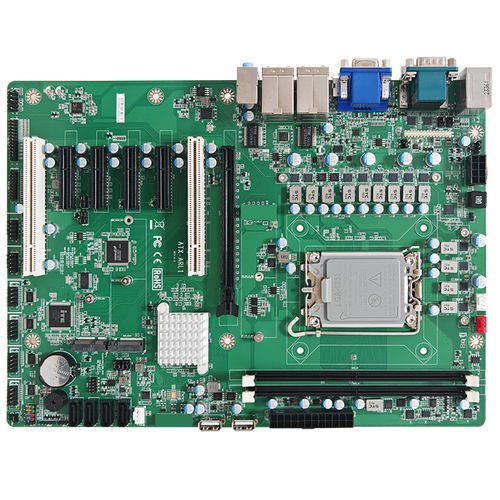

ATX motherboard - ATX-ARL1-H810 series - Jetway Information Co., Ltd. - embedded / Intel® Core™ Ultra / Intel® Alder Lake-S - image - 2
ATX motherboard - ATX-ARL1-H810 series - Jetway Information Co., Ltd. - embedded / Intel® Core™ Ultra / Intel® Alder Lake-S - image - 3
ATX motherboard - ATX-ARL1-H810 series - Jetway Information Co., Ltd. - embedded / Intel® Core™ Ultra / Intel® Alder Lake-S - image - 4
Add to favorites
Compare this product
Go to the Jetway Information Co., Ltd. website for more information

Characteristics

Format
ATX, embedded
Processor
Intel® Alder Lake-S, Intel® Core™ Ultra
Chipset
Intel® HD
Memory
DDR5 UDIMM, DDR5 SDRAM
Extension slot
M.2, M.2 Key M, M.2 Key E, SATA3, PCI Express, 16x PCI Express
Applications
industrial, embedded
Connectivity
2.5 GbE, USB 2.0, USB 3.0, HDMI, VGA, RJ45, GbE, DisplayPort, PS2

Description

Overview
  • The ATX-ARL1-H810 is an ATX industrial motherboard designed for industrial and embedded applications, supporting Intel® Core™ Ultra (Arrow Lake-S) processors on the H810 chipset. It provides wide I/O, expansion and storage options with industrial operating ranges and certification.


Key features
  • Supports Intel® Core™ Ultra (Arrow Lake-S) CPUs with H810 chipset
  • Memory: 2 x DDR5 6400MT/s UDIMM (up to 96GB)
  • Display: 1 x VGA, 1 x HDMI® 2.0, 1 x DP2.1; up to 3 simultaneous displays
  • Networking: 1 x 2.5GbE (Intel® I226-V), 1 x GbE (Intel® I219-V)
  • I/O: 6 x COM, 4 x USB3.2 Gen1, 6 x USB2.0, internal vertical USB Type-A for 2 x USB2.0
  • Storage & expansion: 4 x SATA III; M.2 M-key 2242/2280 (SATA), M.2 E-key 2230 (CNVi/USB2.0); 1 x PCIe x16 Gen4, 1 x PCIe x4 Gen4, 3 x PCIe x1 Gen4, 2 x PCI


Packing list
  • F04-MB-060-1F — LA31 2U/PS2+2COM+HDMI+HDMI/VGA+UL+UL+3JK (Qty: 1)
  • G01-SATA3-BL-1F — CABLE for SATA3 50cm Blue w/LOCK (Qty: 2)
  • G01-COM9X2-30A-1F — CABLE +COM9x2 K=10 30cm No bends + metal sheet (Qty: 1)


Ordering information
  • ATX-ARL1-H81000A1
  • ATX-ARL1-H81002A1


Technical specifications
  • Form factor: ATX (305.0 x 220.0 mm)
  • BIOS: UEFI; Wake on LAN; Watchdog timer (255 levels)
  • Security: Intel® PTT (integrated fTPM) & TPM 2.0 (dTPM)
  • Power: 24+8-pin ATX PWR; Power mode: AT / ATX selectable
  • Graphics: Intel® HD Graphics; DP2.1 (max 7680 x 4320 @60Hz), HDMI®2.0 (max 4096 x 2304 @60Hz), VGA (max 1920 x 1080 @60Hz)
  • Audio: Realtek ALC897 (Line-in, Line-out, MIC-in)
  • Internal I/O & headers: 16-bit GPIO (5V), SMBus, 1 CPU fan header, 2 system fan headers
  • Storage: 4 x SATA III; M.2 sockets as listed
  • Operating temp: 0 °C to 60 °C; Storage temp: -20 °C to 70 °C; Operating humidity: 10%–90% RH non-condensing


Certifications & compliance
  • CE / FCC Class A, LVD
  • ESG declaration: EU RoHS, REACH
