3.5" SubCompact single-board computer F35-EHL1 series
Intel® Celeron® J6412Intel® Elkhart lake SoCM.2

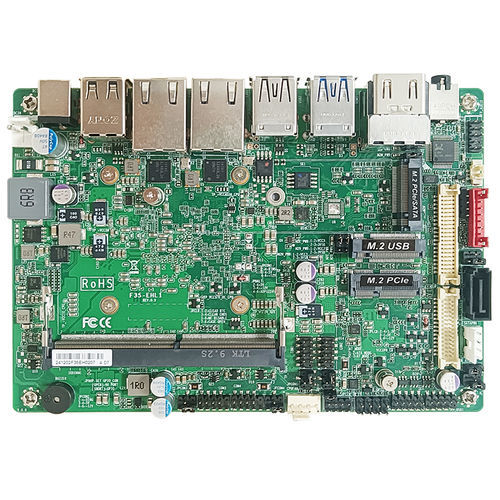

3.5" SubCompact single-board computer - F35-EHL1 series - Jetway Information Co., Ltd. - Intel® Celeron® J6412 / Intel® Elkhart lake SoC / M.2
3.5" SubCompact single-board computer - F35-EHL1 series - Jetway Information Co., Ltd. - Intel® Celeron® J6412 / Intel® Elkhart lake SoC / M.2
3.5" SubCompact single-board computer - F35-EHL1 series - Jetway Information Co., Ltd. - Intel® Celeron® J6412 / Intel® Elkhart lake SoC / M.2 - image - 2
3.5" SubCompact single-board computer - F35-EHL1 series - Jetway Information Co., Ltd. - Intel® Celeron® J6412 / Intel® Elkhart lake SoC / M.2 - image - 3
3.5" SubCompact single-board computer - F35-EHL1 series - Jetway Information Co., Ltd. - Intel® Celeron® J6412 / Intel® Elkhart lake SoC / M.2 - image - 4
Add to favorites
Compare this product
Go to the Jetway Information Co., Ltd. website for more information

Characteristics

Form factor
3.5" SubCompact
Processor
Intel® Celeron® J6412, Intel® Elkhart lake SoC
Extension slot
M.2, M.2 Key E, M.2 Key B, M.2 Key M, SIM card
Operating system
Linux, Windows 10, Windows 11
Connectivity
LVDS, RS232, 2.5 GbE, USB 2.0, USB 3.1, HDMI, RS-485, RS-422, RJ45, eDP
Applications
for industrial automation
Memory
DDR4 SO-DIMM, DDR4 3200 MHz
Other characteristics
industrial, embedded, multiple display, dual Ethernet
Processor frequency

Max.: 8 GHz

Min.: 0 GHz

Memory size

Max.: 32 GB

Min.: 0 GB

Description

Overview
  • The F35-EHL1 is a 3.5-inch single-board computer designed for industrial and embedded applications. It integrates an onboard Intel® Celeron® J6412 (Elkhart Lake) SoC and supports Windows® 11/10 (64-bit) and Linux.


Key specifications
  • Form factor: 3.5" (148.0 x 102.0 mm)
  • CPU: Onboard Intel® Celeron® J6412 (TDP 10W)
  • Memory: 1 x DDR4 SO-DIMM (3200MT/s), single channel, up to 32GB
  • BIOS: AMI Flash ROM; Watchdog timer: 255 levels
  • Security: Intel® PTT (integrated fTPM) & TPM 2.0 (dTPM)


I/O and expansion
  • Display: 2 x HDMI® 2.0 (up to 4096 x 2160 @60Hz); 1 x eDP (up to 2560 x 1600 @60Hz); 1 x LVDS (up to 1920 x 1200 @60Hz)
  • Network: 2 x RJ45 with Intel® I226-V 2.5GbE
  • USB: 3 x USB 3.1 Gen2; 3 x USB 2.0; internal header for 2 x USB 2.0
  • Serial: Internal headers for 2 x RS-232/422/485 and 2 x RS-232
  • Storage & expansion: 1 x SATA III + SATA power; M.2: M-Key 2242/2280 (SATA/PCIe 3.0 x2), B-Key 3042 (USB2.0/USB3.1), E-Key 2230 (USB2.0/PCIe 3.0 x1)
  • Additional I/O: GPIO 8-bit, SMBus, front panel signals, SIM card slot
  • Audio: Realtek ALC897 codec, combo audio jack, 3W amplifier


Power, environment & system
  • Power input: DC-in 12~36V; power on mode: AT / ATX; connectors: internal 2-pin header and DC jack
  • GPU: Intel® HD Graphics (shared memory)
  • Operating temperature: -10°C to 60°C; Storage temperature: -20°C to 70°C; Operating humidity: 10–90% @40°C non-condensing


Compliance & options
  • Certifications: CE / FCC Class A; LVD
  • ESG declaration: EU RoHS, China RoHS; REACH available as option
