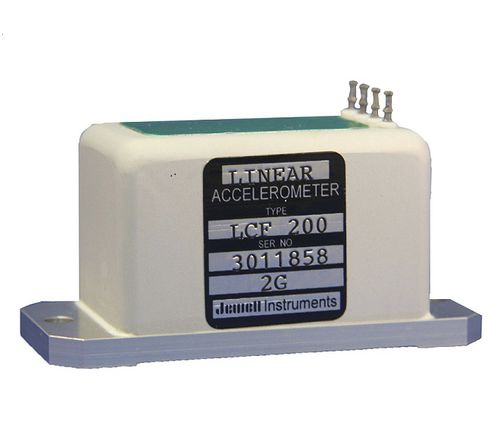

Single-axis accelerometer LCF-200 Series
shear

single-axis accelerometer
single-axis accelerometer
Add to favorites
Compare this product


Characteristics

Number of axes
single-axis
Technology
shear
Frequency

Min.: 5 Hz

30 Hz

Max.: 100 Hz

Description

The input of this item ranges between 0.5 and 5.0g, with the exception of bias and scale factors. The Jewell LCF-200 series accelerometers are known for being compatible with applications defined by high shock and vibration levels. The LCF units are defined by an excellent turn on repeatability, as well as the very low hysteresis. There are plenty of features, including the 5 to 100Hz bandwidth, along with the high level Vdc output and the shock capability of 1,500g. In terms of applications supported, railcar acceleration and deceleration control is just one example, while the ocean buoy acel sensing and aircraft stability control feature are important. Vehicle roadway profiling is also possible with the use of this device. More information on this product series can be obtained by contacting Jewell Instruments. Features & Benefits • ±0.5g to ± 5.0g Full Range • Filtering 5 to 100 Hz Bandwidth • Exceptional Bias & Scale Factor • High Level ± Vdc Output • 1,500g Shock Capability Applications • Geophysical Testing • Railcar Acceleration Control • Railcar Deceleration Control • Ocean Buoy Acel Sensing • Aircraft Stability Control • Aircraft Flight Testing • Vehicle Roadway Profiling
