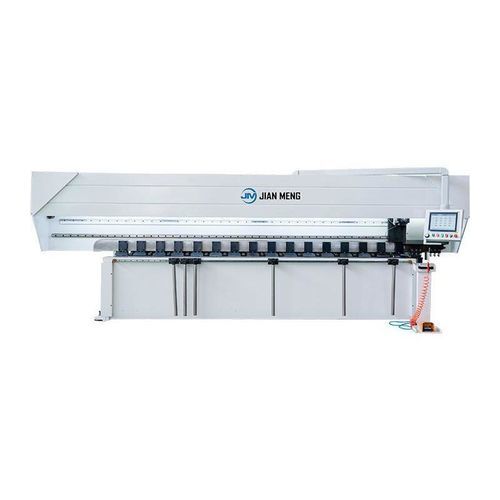

Automatic grooving machine

V-shapedCNC

Product Overview
The vertical V groove machine has a groove cutting speed of up to 120 m/min and a repeatability accuracy of ± 0.02 mm, compatible with various plates such as stainless steel and aluminum alloy. Hydraulic automatic clamping system, 15 inch industrial touch screen with one click programming, assists in efficient and precise pre bending processing.

Vertical Structure
The vertical V cut machine adopts a frame structure and a low-alloy, high-strength structural steel worktable. The integrated bottom film is formed in one go and can be processed on the mirror plate without leaving any marks. The whole machine is tempered in an electric furnace to eliminate welding stress, and is clamped and formed in one go through an imported CNC machining center to ensure that each installation surface is parallel and perpendicular. Sandblasting treatment ensures coating quality. During operation, the knife holder remains stationary, and the board is driven to move by the feed. The groove depth and distance are precisely controlled, resulting in excellent overall rigidity, durability, and stability.

CNC System
The vertical V grooving machine is equipped with an intelligent CNC system that can automatically calculate groove spacing based on the size and inner and outer diameter requirements of the sheet metal, achieving precise positioning. One click loop programming reduces programming time by 80%. Visual graphic editing, supporting hand drawing and import design. Real time bending effect simulation, avoiding input errors, reducing material waste, and achieving efficient and stable production.

Alloy Blade Holder
The vertical V cutting machine adopts an integrated tool holder and a fully automatic self-lubricating system. The tool holder moves up and down synchronously for lubrication, effectively reducing friction loss and extending service life. Unique three blade distribution design, evenly distributing cutting amount, reducing workpiece deformation. Optional micro cooling device can further extend tool life and reduce production costs. The universal tool clamping interface supports the exchange of white steel tools and alloy tools, meeting various processing needs and assisting in high-precision, efficient and stable production.

Workbench Surface
The vertical grooving machine adopts a carbon tool steel worktable. After high-frequency quenching, the hardness reaches 55-60HRC, much higher than stainless steel, effectively preventing scratches and deformation, ensuring the flatness of the worktable is ≤± 0.03mm, improving V-groove accuracy and extending equipment life. Equipped with dense pressure feet and hydraulic system, the clamping force is stable and reliable.

High Precision Transmission
The vertical V cut machine is equipped with a full servo motor and planetary gearbox, which provides high torque, high precision, low energy consumption, and rapid response. The crossbeam transmission adopts a double guide rail structure of grinding helical gears and high-precision helical racks, with stable and efficient variable frequency speed regulation, achieving high-speed chip feed and stable processing, and meeting various processing needs, significantly improving production efficiency.

Technical Specifications

	1232	1240	1532	1540	1560
Processing range of sheet metal (mm)	1250×3200	1250×4000	1500×3200	1500×4000	1500×6000
Machinable sheet thickness (mm)	0.4-6.0	0.4-6.0	0.4-6.0	0.4-6.0	0.4-6.0
Distance between V-shaped groove and edge Min (mm)	10	10	10	10	10
Table flatness (mm)	±0.03	±0.03	±0.03	±0.03	±0.03
Max axis speed parallel to the X-axis (m/min)	120	120	120	120	120
Max axis speed parallel to the Y-axis (m/min)	60	60	60	60	60
Main servo motor power (kW)	5.5	5.5	5.5	5.5	5.5
Repetitive positioning accuracy (mm)	0.015	0.015	0.015	0.015	0.015
Dimensions (mm)	4900×2350×2000	5700×2350×2000	4900×2600×2000	5700×2600×2000	7700×2600×2000

Features / Technical Specifications

• Groove cutting speed: up to 120 m/min
• Repeatability accuracy: ± 0.02 mm
• Compatible with stainless steel, aluminum alloy, and other plates
• Hydraulic automatic clamping system
• 15 inch industrial touch screen with one click programming
• Frame structure with high-strength structural steel worktable
• Integrated bottom film, mirror plate processing without marks
• Electric furnace tempering to eliminate welding stress
• Imported CNC machining center for high precision
• Sandblasting treatment for coating quality
• Stationary knife holder, board driven by feed
• Intelligent CNC system with automatic groove spacing calculation
• One click loop programming, visual graphic editing
• Real time bending effect simulation
• Integrated tool holder with self-lubricating system
• Three blade distribution design
• Optional micro cooling device
• Universal tool clamping interface
• Carbon tool steel worktable, hardness 55-60HRC
• Flatness ≤± 0.03mm
• Dense pressure feet and hydraulic system for stable clamping
• Full servo motor and planetary gearbox
• Double guide rail structure, grinding helical gears, high-precision racks
• Stable and efficient variable frequency speed regulation
