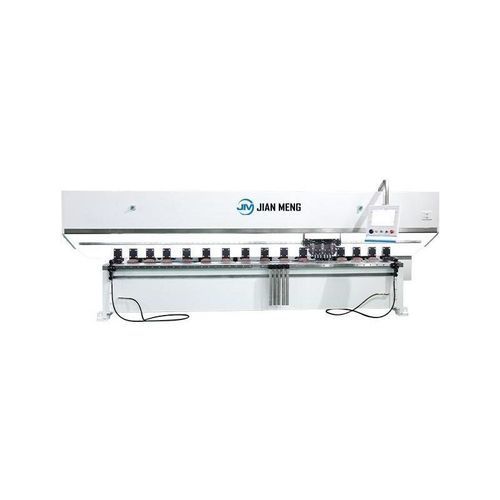

V-shaped grooving machine

CNC

Product Overview
The dual-head vertical grooving machine features a grooving speed of up to 120 m/min, repeatability of ±0.02 mm, and compatibility with various plates such as stainless steel and aluminum alloy. It is equipped with a hydraulic automatic clamping system and a 15-inch industrial touch screen with one-click programming, assisting in efficient and precise pre-bending processing.

• Hydraulic automatic clamping system
• 15-inch industrial touch screen with one-click programming
• Compatible with stainless steel, aluminum alloy, and other plates
• Grooving speed up to 120 m/min
• Repeatability: ±0.02 mm

Vertical Structure
The machine adopts a frame structure and a low-alloy, high-strength structural steel worktable. The integrated bottom film is formed in one go and can be processed on the mirror plate without leaving any marks. The entire machine is tempered in an electric furnace to eliminate welding stress and is clamped and formed in one go through an imported CNC machining center to ensure that each installation surface is parallel and perpendicular. Sandblasting treatment ensures coating quality. During operation, the knife holder remains stationary, and the sheet is driven to move by the feed. The groove depth and groove distance are precisely controlled, ensuring excellent rigidity, durability, and stability.

• Frame structure with high-strength steel worktable
• Integrated bottom film, no marks on mirror plate
• Electric furnace tempering to eliminate welding stress
• Imported CNC machining for parallel and perpendicular surfaces
• Sandblasting for coating quality
• Stationary knife holder, moving sheet feed
• Precise control of groove depth and distance

CNC System
The machine is equipped with an intelligent CNC system that can automatically calculate groove spacing based on the size and inner and outer diameter requirements of the sheet metal, achieving precise positioning. One-click loop programming reduces programming time by 80%. Visual graphic editing supports hand drawing and import design. Real-time bending effect simulation avoids input errors, reduces material waste, and achieves efficient and stable production.

• Automatic calculation of groove spacing
• One-click loop programming (reduces programming time by 80%)
• Visual graphic editing (hand drawing and import design supported)
• Real-time bending effect simulation
• Efficient and stable production

Double Knife Holder
The dual tool holder design enables back and forth processing, fully utilizing return time and power, increasing the efficiency of thick plate processing by 50%. Each tool holder is equipped with three knives, evenly distributing the cutting amount and reducing the risk of workpiece deformation. Supports micro cooling devices to extend tool life and reduce costs. The universal tool clamping interface is compatible with both white steel and alloy knives, meeting various processing needs.

• Dual tool holder for back and forth processing
• Efficiency increase for thick plate processing: 50%
• Three knives per holder for even cutting and reduced deformation
• Supports micro cooling devices
• Universal tool clamping interface (white steel and alloy knives)

Workbench Surface
The worktable is made of carbon tool steel, with hardness reaching 55-60HRC after high-frequency quenching, much higher than stainless steel. This effectively prevents scratches and deformation, ensuring the flatness of the worktable is ≤±0.03mm, improving V-groove accuracy and extending equipment life. Equipped with dense pressure feet and a hydraulic system for stable and reliable clamping force.

• Carbon tool steel worktable
• Hardness: 55-60HRC
• Flatness: ≤±0.03mm
• Dense pressure feet and hydraulic system

High Precision Transmission
The machine is equipped with a full servo motor and planetary gearbox, providing high torque, high precision, low energy consumption, and rapid response. The crossbeam transmission adopts a double guide rail structure of grinding helical gears and high-precision helical racks, with stable and efficient variable frequency speed regulation, achieving high-speed chip feed and stable processing, significantly improving production efficiency.

• Full servo motor and planetary gearbox
• High torque and precision, low energy consumption
• Double guide rail structure with grinding helical gears and racks
• Stable and efficient variable frequency speed regulation

Technical Specifications
Processing range of sheet metal (mm):
1232: 1250×3200
1240: 1250×4000
1532: 1500×3200
1540: 1500×4000
1560: 1500×6000
Machinable sheet thickness (mm): 0.4-6.0
Distance between V-shaped groove and edge Min (mm): 10
Table flatness (mm): ±0.03
Max axis speed parallel to the X-axis (m/min): 120
Max axis speed parallel to the Y-axis (m/min): 60
Main servo motor power (kW): 5.5
Repetitive positioning accuracy (mm): 0.015
Dimensions (mm):
1232: 4900×2350×2000
1240: 5700×2350×2000
1532: 4900×2600×2000
1540: 5700×2600×2000
1560: 7700×2600×2000

Key Features / Technical Specifications

• Dual-head vertical grooving machine
• Grooving speed: up to 120 m/min
• Repeatability: ±0.02 mm
• Hydraulic automatic clamping system
• 15-inch industrial touch screen
• Frame structure, high-strength steel worktable
• Intelligent CNC system with one-click programming
• Double knife holder for increased efficiency
• Carbon tool steel worktable, hardness 55-60HRC
• Full servo motor and planetary gearbox
• Processing range: up to 1500×6000 mm
• Sheet thickness: 0.4-6.0 mm
• Table flatness: ±0.03 mm
• Main servo motor power: 5.5 kW
• Repetitive positioning accuracy: 0.015 mm
