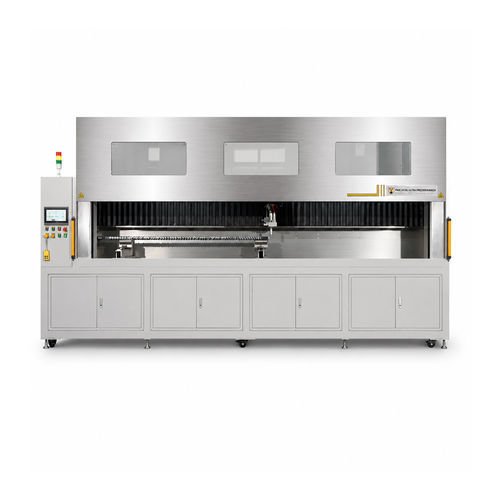

Water cleaning machine PRO-COOL

automaticfor extruder screwshigh-pressure

Product overview
The PRO-COOL screw cleaning machine is designed for efficient, non‑destructive cleaning of extruder screws and related extrusion components. Its patented process removes polymer residues and contaminants without flame burning, manual brushing, toxic fumes, or surface damage. Suitable for screws, die plates, breaker plates, shafts, nozzles, mandrels and other extrusion tooling, PRO-COOL reduces maintenance time and labour costs while minimising component wear and environmental impact.

Efficient and non-destructive screw cleaning
PRO-COOL is engineered to deliver high-performance cleaning for extrusion screws used in plastics processing. The non‑destructive method removes stubborn material buildup while preserving the original geometry, hardness and dimensional accuracy of the screw. Compared with flame treatment, incineration or manual brushing, it prevents high‑temperature damage, deformation, oxidation and loss of hardness, helping extend component service life and stabilise extrusion performance.

Wide compatibility for extrusion components
The machine's universal cleaning structure accepts a range of screw diameters and extrusion accessories. In addition to single- and twin‑screw extruder screws, the system cleans die plates, breaker plates, shafts, nozzles, mandrels and other extruder tooling. This flexibility makes PRO-COOL suitable for compounding, masterbatch production, polymer processing, recycling and other extrusion applications with frequent material changes and regular maintenance requirements.

Features

• Non‑destructive, high‑efficiency cleaning for extruder screws.
• Universal design to accommodate various screw types.
• Screws can be dried with compressed air and receive anti‑rust treatment after cleaning.
• Very low water consumption; contaminants are filtered and collected for environmental protection and low operating cost.
• No toxic fumes or smoke generated; fully dust‑free, safe and harmless, saving time and labour.
• No need for flame burning, incineration or manual brushing, avoiding deformation and hardness degradation from high temperatures.

Solution

• Hammelmann High-Pressure Pump: imported original Hammelmann high‑pressure pump for strong cleaning performance (pump pressure and flow rate specified in technical data).
• Easy and intelligent operation: PLC control system with automated cleaning cycles for convenient, efficient and operator‑friendly use.
• Average cleaning time: efficient non‑destructive cleaning with an average time of around 30 minutes per screw.
• Multiple cleaning functions: optional rotating worktable supports cleaning of die plates, breaker plates, filter screens, mandrels and other extrusion components.

Application range
Maximum cleaning diameter: Ø180 mm (customisable)
Maximum cleaning length: 6500 mm (customisable)

Cleaning results
PRO-COOL delivers effective cleaning across a wide range of extrusion materials and compounds. The process removes carbonised residue, polymer buildup and processing contaminants without damaging the screw surface. Demonstrated successful cleaning for materials including:

• BOPA
• PPS
• PA6 + glass fiber
• ABS
• Powder coating
• TPE
• PEI
• PC

Technical specifications

• Application range — Maximum cleaning diameter: Ø180 mm (customisable)
• Application range — Maximum cleaning length: 6500 mm (customisable)
• Water filtration level: 2‑stage filtration
• Pump pressure: 2100 bar
• Cleaning medium: Water
• Water flow rate: 8.9 L/min
• Cleaning efficiency: Average 30 min per screw
• Residue collection: Automatic transfer to filtration system
• Safety door: Pneumatic control
• Machine dimensions: 4500 / 5500 / 6500 / 7500 (L) × 1000 (W) × 1800 (H) mm
• Residue filtration: Two‑stage filtration for solid particles above 1 mm diameter
