Pallet dismantling machine PRO-EASY

Product Overview

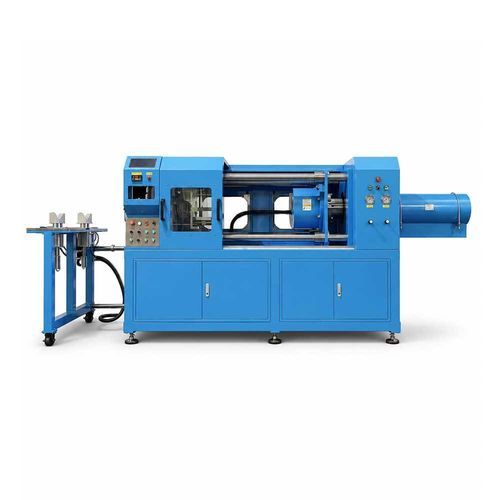

The PRO-PRO-EASY D30/150 Screw Dismantling Machine is an industrial solution for controlled removal of extruder screw elements and shafts. The patented universal clamping system accommodates screw diameters from Ø30 to Ø150 mm and eliminates frequent change of dedicated fixtures, improving workshop flexibility and reducing setup time.

Flexible Hydraulic Dismantling Solution for Extruder Screw Maintenance
Designed for maintenance, repair and material changeovers, the machine combines hydraulic clamping, controlled heating and auxiliary supports to handle bonded, extra-long or high-value screw assemblies with minimal manual intervention.

Key Functional Description
The hydraulic control provides adjustable clamping and dismantling force to extract screw elements while limiting shaft deformation and surface damage. An aluminum-alloy collet protects mating surfaces. The system includes an auxiliary dismantling unit and support frame for extra-long or heavily bonded shafts to reduce downtime.

Features

• Screw diameter range: Ø30–Ø150 mm.
• Adjustable clamping and disassembly pressure via hydraulic system; aluminum alloy collet protects shafts and screws.
• Auxiliary disassembly unit for difficult cases and bonded elements.
• Auxiliary support frame for extra-long or overweight shafts to ensure alignment during dismantling.
• Designed to reduce manual handling and speed up maintenance cycles.

Structure and Components

• Aluminum Grippers: Interchangeable grippers matched to screw profile, mounted on the hydraulic chuck and actuated from the control panel.
• KB Dismantling Fixture: Positioning block pin near screw midline; for short elements, adjacent screws can be used to assist ejection.
• Screw Disassembly Gripper: Dedicated gripper for axial extraction; compatible with extension sleeves for recessed elements.
• High Frequency Heating System: Precise pre-heating control; coil inner diameter sized 20–40 mm larger than the screw OD; coil specs customizable per screw model.
• Drive End Screw Removal: Semicircular ferrule and clamp rod method with slow-gear feed to incrementally free adjacent elements; use extension sleeve and disassembly gripper to push out elements.

Dismantling Completed
Operation follows a controlled sequence to protect screws and shafts. After extraction, components must be placed according to workshop procedures (for example on pallets) and allowed to cool before further handling.

Specifications

• Dismantling diameter: Ø30 – Ø150 mm
• Dismantling length: Unlimited (auxiliary support brackets available for extra-long shafts)
• Voltage: AC 380V
• Total power: 45 kW
• Hydraulic power: 6 kW
• Hydraulic oil type: AW46
• Heating range: 0–600 °C
• Clamping force: 0–50 tons (adjustable)
• Required air pressure: >0.5 MPa
• Hydraulic system: Rexroth
• Electrical system: Schneider
• Total weight: 2450 kg
• Dimensions (L×W×H): 3950 × 1000 × 1800 mm
• Model designation: PRO-PRO-EASY D30/150
