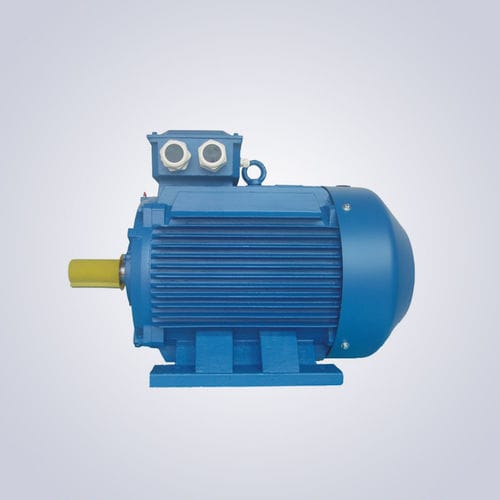

Low-voltage motor YE3 Series H80-450asynchronousthree-phaseIE3
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous, three-phase
- Efficiency classes
- IE3
- Number of poles
- 4-pole, 2-pole, 6-pole, 8-pole, 10-pole, 12-pole, 5-pole
- Applications
- industrial, for boat, packaging machine, for the chemical industry, for fans, for compressors, for the mining industry, for the oil and gas industry, for water pumps, for the pharmaceutical industry
- Other characteristics
- low-voltage, IEC, high-efficiency, low-noise
- Power
Min.: 0.55 kW
(0.75 hp)Max.: 1,000 kW
(1,359.62 hp)
Description
Frame number: H80-450
Number of poles: 2-12P
Voltage: 1000V and below
YE3 series three-phase asynchronous motor, frame number: H80-450, capacity: 0.55-1000kW, number of poles: 2-12P, voltage: 1000V and below, with high starting torque, low noise, and motor efficiency indicators meeting the energy efficiency level 3 specified in GB18613-2020 and the IE3 energy efficiency level specified in IEC60034-30; Suitable for driving various general mechanical equipment, such as compressors, fans, water systems, etc. It can also be used in petroleum, chemical, pharmaceutical, mining, and other fields.
