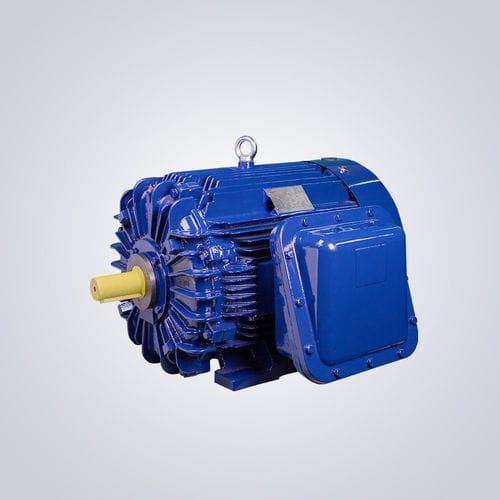

NEMA motor NEPXasynchronousthree-phase460 V
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous, three-phase
- Voltage
- 460 V, 575 V, 220 V, 208 V, 380 V
- Configuration
- cast iron, squirrel-cage rotor
- Protection class
- explosion-proof
- Number of poles
- 4-pole, 2-pole, 6-pole
- Applications
- for pump, for the chemical industry, for the mining industry, for the oil and gas industry, for marine applications, for the pharmaceutical industry, for the petroleum industry, for the plastics industry
- Other characteristics
- low-voltage, ultra high-efficiency, NEMA
- Power
Min.: 1 kW
(1.36 hp)Max.: 186 kW
(252.89 hp)
Description
explosion-proof ultra efficient three-phase asynchronous motor
Frame number: 143T~449T (TC, TS)
Capacity: 1-250HP
Number of poles: 2-6P
Voltage: 208~230/460V, 460V, 380V,575V
Frequency: 60Hz, 50Hz
NEMA standard NEPX series explosion-proof ultra high efficiency three-phase asynchronous motor, frame number: 143T~449T (TC, TS), capacity: 1~250HP, pole number: 2~6P, voltage: 208~230/460V, 460V, 380V, frequency: 60HZ, 50HZ. The performance level meets the design requirements of B, and the installation dimensions and efficiency indicators comply with the American (NEMA) MG1-2009 standard. The safety characteristics comply with the provisions of ANSI/UL674-2011. Suitable for various types of petroleum, chemical, natural gas, biological, pharmaceutical and other mechanical supporting devices in explosive environments of Class I, Zone 1, Groups C and D.
