- Jiangsu Dazhong Electric Motor CO., Ltd

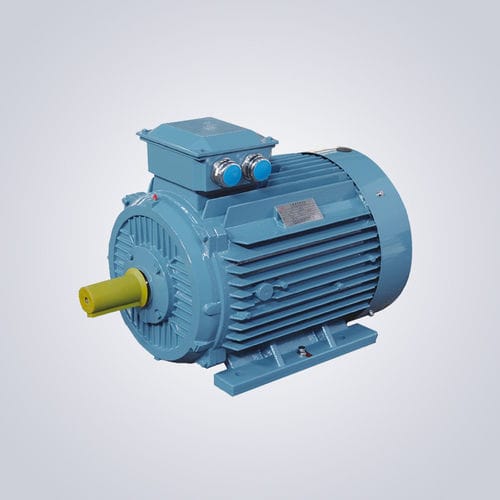

Motor with variable frequency drive YE4P Series H63-355asynchronousthree-phaseIE4
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous, three-phase
- Efficiency classes
- IE4
- Number of poles
- 4-pole, 2-pole, 6-pole, 8-pole, 10-pole, 12-pole, 5-pole
- Applications
- industrial, for boat, packaging machine, for the chemical industry, for fans, for the mining industry, for the oil and gas industry, for water pumps, for the pharmaceutical industry
- Other characteristics
- low-voltage, high-efficiency, with variable frequency drive
- Power
Min.: 0.12 kW
(0.16 hp)Max.: 450 kW
(611.83 hp)
Description
secondary energy efficiency variable frequency speed control low-voltage three-phase asynchronous motor
Frame number: H63-355
Number of poles: 2-12P
Voltage: 1000V and below
YE4 series three-phase asynchronous motor, frame number H63-355; Capacity: 0.12-450kw; Pole number: 2-12P; Voltage: 1000V and below; The efficiency values of 2-8P comply with the IE4 energy efficiency level in IEC60034-30 and the level 2 energy efficiency in GB18613-2020; Can be used to drive various general mechanical equipment, suitable for petroleum, chemical, pharmaceutical, mining and other occasions.
Catalogs
No catalogs are available for this product.
See all of Jiangsu Dazhong Electric Motor CO., Ltd‘s catalogsOther Jiangsu Dazhong Electric Motor CO., Ltd products
