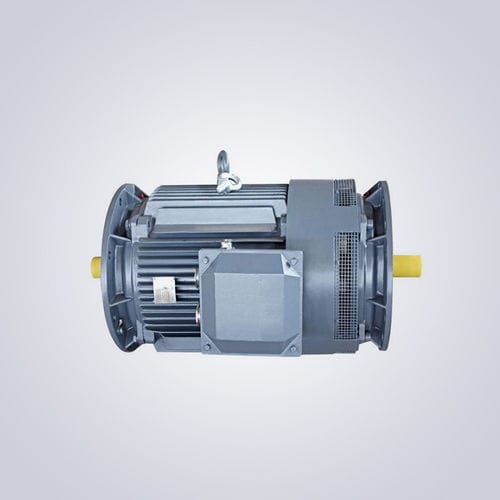

Motor for marine applications Y2E2 series
asynchronousthree-phase380 V

Motor for marine applications - Y2E2 series - Jiangsu Dazhong Electric Motor CO., Ltd - asynchronous / three-phase / 380 V
Motor for marine applications - Y2E2 series - Jiangsu Dazhong Electric Motor CO., Ltd - asynchronous / three-phase / 380 V
Add to favorites
Compare this product
Go to the Jiangsu Dazhong Electric Motor CO., Ltd website for more information

Characteristics

Type
asynchronous, three-phase
Voltage
380 V, 440 V
Protection class
IP56
Number of poles
4-pole
Applications
for cranes, for marine applications
Other characteristics
high-efficiency
Power

Min.: 75 kW
(101.97 hp)

Max.: 400 kW
(543.85 hp)

Description

high-efficiency marine crane dedicated three-phase asynchronous motor Frame number: H280~315 Number of poles: 4P Working system and capacity: S1: 75-200KW; S6-15%: 132~400KW; S6-40%: 112~340KW. Voltage and frequency levels: 380V/50HZ, 440V/60HZ. The protection level reaches IP56. Y2E2 series high-efficiency marine crane dedicated three-phase asynchronous motor, frame number: H280-315, pole number 4P, working system and capacity: S1:75-200KW; S6-15%: 132~400KW; S6-40%: 112~340KW. Voltage and frequency levels: 380V/50HZ, 440V/60HZ. The protection level reaches IP56. The installation methods are B3, V11, B5, and V1; It has the advantages of high efficiency, large starting torque, and strong overload capacity. Suitable for mechanical equipment of ship and dock cranes.
