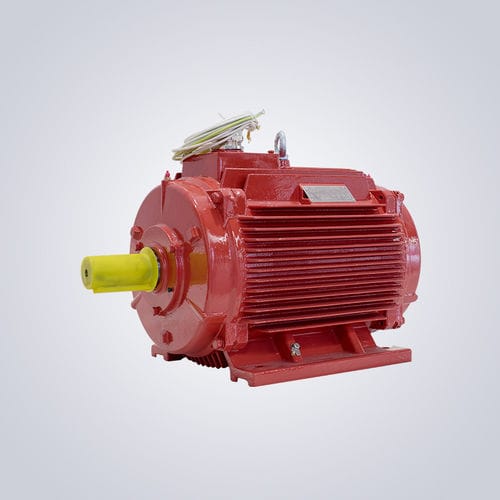

High temperature-resistant motor YE2Gasynchronousthree-phase4-pole
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous, three-phase
- Protection class
- high temperature-resistant
- Number of poles
- 4-pole, 2-pole, 6-pole
- Applications
- for fans, high-temperature, for firefighting
- Other characteristics
- high-efficiency
- Power
Min.: 0.75 kW
(1.02 hp)Max.: 375 kW
(509.86 hp)- Operating temperature
300 °C
(572 °F)
Description
high-temperature resistant and high-efficiency three-phase asynchronous motor
Frame number: H80~355
Number of poles: 2-6P
YE2G series high-temperature and high-efficiency three-phase asynchronous motor, frame number: H80-355; Capacity: 0.75kW~375kW; Pole number: 2-6P; It is suitable for supporting the ventilator of fire fighting systems such as subway, tunnel, shopping mall, parking lot, flue, etc. The high temperature resistance rating is 200 ℃/2h, 250 ℃/2h, 280 ℃/1h, 300 ℃/2h, and it has the qualification certificate.
