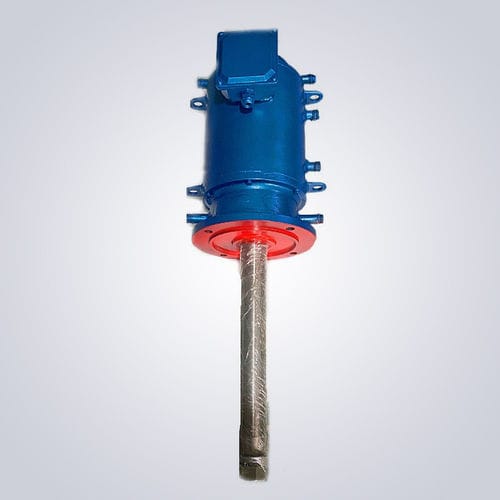

High-temperature motor YLM seriesasynchronousthree-phase380 V
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous, three-phase
- Voltage
- 380 V
- Protection class
- IP65
- Cooling mechanism
- water-cooled
- Applications
- high-temperature, for furnaces and ovens
- Other characteristics
- single-speed
- Power
Min.: 0.75 kW
(1.02 hp)Max.: 37 kW
(50.31 hp)- Operating temperature
950 °C
(1,742 °F)
Description
high-temperature water-cooled motor
Rated voltage: 380V
Rated frequency: 50HZ
Protection level: IP65
Insulation level: F
Working system: S1
Installation method: V3
The YLM series high-temperature water-cooled motor is a single speed motor, with a water-cooled structure for the base and flange end cover. The motor can withstand the operating conditions of 950 ℃ furnace temperature, and has good sealing performance, with an ultimate vacuum degree of 0.13pa. Suitable for carburizing furnaces, annealing furnaces, tempering furnaces, etc.
