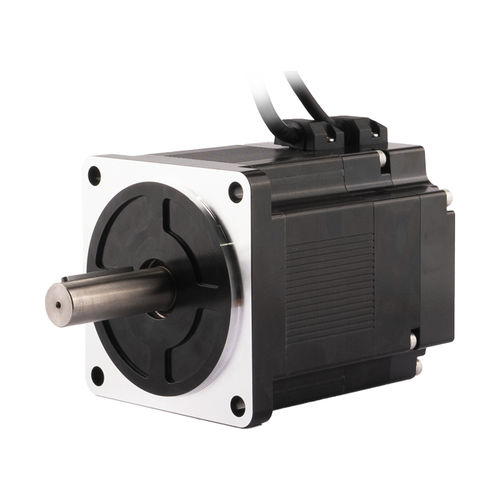

Brushless motor 110ZWS132XE-1

DCBLDC120V

Product overview
The 110mm Brushless DC Motor 110ZWS132XE-1 delivers a rated torque of 4.6 N·m and rated power of 710 W. The motor uses a star (wye) winding and is configured as a 5 pole-pairs machine with Hall-sensor feedback as standard. Gearbox and incremental encoder options are available to adapt the motor to application requirements.

Motor characteristics (key data)
Model: 110ZWS132XE-1
Body length (LT): 131±1 mm
Pole pairs: 5
Phase-to-phase resistance: 1.04 Ω
Phase-to-phase inductance: 3.658 mH
Winding connection: Star (wye)
Insulation class: B
Duty type: S1
Commutation angle: 120°
Withstand voltage: 1000 VAC / 1 kHz / 1 mA / 1 s
Insulation resistance: 100 MΩ (20°C)
Weight: 3 kg
Rated voltage: 120 V
Rated power: 710 W
Rated torque: 4.6 N·m
Rated speed: 1500 RPM
Rated current: 9.6 A
No-load speed: 1850 RPM
No-load current: 0.65 A
Efficiency: 90%
Noise (at 1 m, ambient 20 dB): <50 dB
Enclosure-ambient thermal resistance: 0.36 K/W
Ambient reference temperature: 20 ℃
Maximum winding temperature: 88 ℃
Torque constant: 0.479 N·m/A
Back-EMF constant (effective): 67.83 V/Krpm
Peak torque: 13.8 N·m
Peak current: 28.8 A
Rotor inertia: 10.2 Kg·cm²

Dimensional drawing & lead-out
Reference model on drawing: 110ZWS132XE-1
Lead-out type: UL3265 AWG16
Lead-out colors/functions: Yellow — U phase, Red — V phase, Black — W phase

Torque performance
Speed–torque curves and performance charts for the 110ZWS132XE-1 are provided on the product page to support sizing and control strategy decisions.

Technical specifications / features

• Model: 110ZWS132XE-1
• Frame: 110 mm
• Rated power: 710 W
• Rated torque: 4.6 N·m
• Peak torque: 13.8 N·m
• Rated speed: 1500 RPM
• No-load speed: 1850 RPM
• Rated voltage: 120 V
• Rated current: 9.6 A
• No-load current: 0.65 A
• Phase-to-phase resistance: 1.04 Ω
• Phase-to-phase inductance: 3.658 mH
• Winding: Star (wye)
• Insulation class: B
• Duty: S1
• Commutation angle: 120°
• Efficiency: 90%
• Noise: <50 dB (at 1 m)
• Weight: 3 kg
• Rotor inertia: 10.2 Kg·cm²
• Torque constant: 0.479 N·m/A
• Back-EMF constant: 67.83 V/Krpm
• Peak current: 28.8 A
• Maximum winding temperature: 88 ℃
• Lead-out: UL3265 AWG16 (Yellow U / Red V / Black W)
• Optional accessories: gearbox, incremental encoder
