Electric actuator 8ZWWC15L

linearwith piston rodDC

Overview
Compact 8 mm push rod actuator with coreless motor and integrated encoder, designed for precise short-stroke linear motion in space-constrained industrial applications.

Motor Characteristics
Motor part number: 8ZWWC15L
Motor size (mm): 8
Rated voltage (V): 12
Rated current (A): 0.085
Lead screw pitch (mm): 0.5
Standard stroke (mm) (customizable): 15
Maximum stroke (mm): 25
Maximum speed (mm/s): 3.58
Rated thrust (N): 25
Peak thrust (short-time) (N): 50
Gear ratio options: 4, 16
Weight (g): 15.7
Overall dimensions (mm): Φ8 × 68.7
Operating temperature (°C): −20 ~ +50
Repeatability (mm): ±0.08
Encoder type: Encoder

Notes
Ø8 model is available with two motor options: Cored Brushed DC and Cored Brushless DC. Standard stroke can be customized on request; gear ratio selectable according to application.

Dimensional Drawings

• Available model designation for drawing: 8ZWWC15L

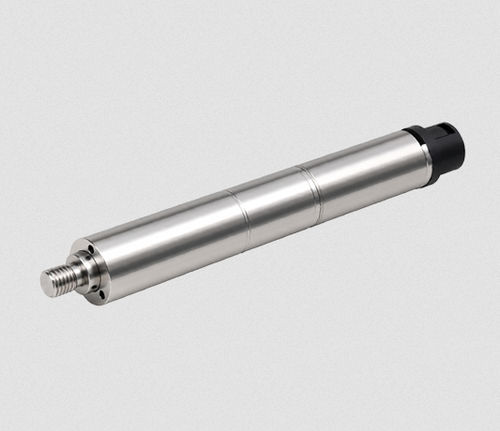

• Product images include main product view and a dimensional drawing for the 8ZWWC15L variant

Technical specifications

• Motor part number: 8ZWWC15L
• Motor size: 8 mm
• Rated voltage: 12 V
• Rated current: 0.085 A
• Lead screw pitch: 0.5 mm
• Standard stroke: 15 mm (customizable)
• Maximum stroke: 25 mm
• Maximum speed: 3.58 mm/s
• Rated thrust: 25 N
• Peak thrust (short-time): 50 N
• Gear ratio options: 4, 16
• Weight: 15.7 g
• Overall dimensions: Φ8 × 68.7 mm
• Operating temperature: −20 ~ +50 °C
• Repeatability: ±0.08 mm
• Encoder type: Encoder
• Available motor options for Ø8 model: Cored Brushed DC, Cored Brushless DC
