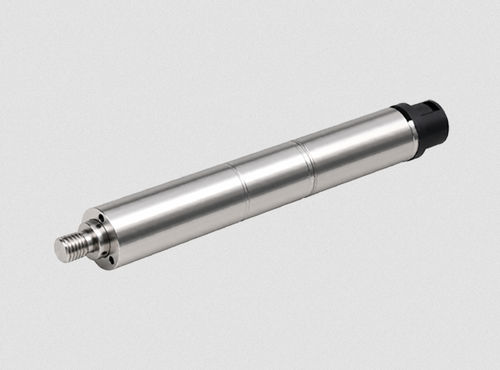

16mm Coreless Push Rod Actuator — model 16ZWWC40L

Motor Characteristics
Motor part number: 16ZWWC40L
Motor size: 16 mm
Rated voltage: 12 V
Rated current: 2.6 A
Lead screw pitch: 1.27 mm
Standard stroke (customizable): 30 mm
Maximum stroke: 40 mm
Maximum speed: 20 mm/s
Rated thrust: 200 N
Peak thrust (short-time): 400 N
Gear ratio: 5.3, 28
Weight: 131.4 g
Overall dimensions: Φ16 × 131.3 mm
Operating temperature: −20 ~ +50 ℃
Repeatability: ±0.08 mm
Encoder type: Incremental magnetic encoder
Number of channels: 3
Encoder supply voltage: 5 V
Resolution: 1024

The above data is based on a gear ratio of 28:1.

Dimensional Drawings
Dimensional drawing and product images available for model 16ZWWC40L

Technical specifications

• Motor part number: 16ZWWC40L
• Motor size: 16 mm
• Rated voltage: 12 V
• Rated current: 2.6 A
• Lead screw pitch: 1.27 mm
• Standard stroke: 30 mm (customizable)
• Maximum stroke: 40 mm
• Maximum speed: 20 mm/s
• Rated thrust: 200 N
• Peak thrust (short-time): 400 N
• Gear ratio options: 5.3, 28
• Weight: 131.4 g
• Overall dimensions: Φ16 × 131.3 mm
• Operating temperature: −20 ~ +50 ℃
• Repeatability: ±0.08 mm
• Encoder type: Incremental magnetic encoder, 3 channels, supply 5 V, resolution 1024
