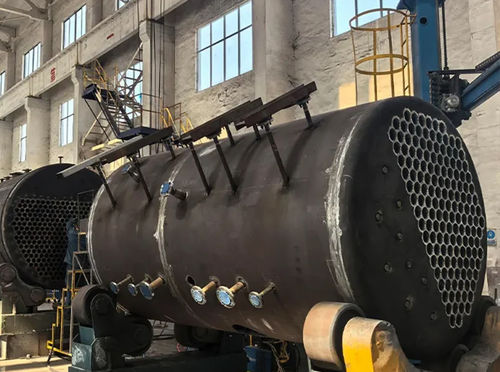

Superheated steam boiler

superheated waterthermal fluidsaturated steam

Cavity Membrane Wall Boiler uses a sealed cavity with membrane water walls to efficiently recover heat from high-temperature, corrosive, and dusty industrial flue gases. It combines radiant and convective heat transfer to improve energy recovery and system stability. High-efficiency boiler with advanced membrane water wall design; thermal efficiency >90%, reducing fuel consumption. Compact and durable under high pressure and temperature—ideal for chemical plants and power stations. Modular design ensures easy maintenance, with intelligent controls for precise steam delivery and lower operating costs. theory The inner walls of the boiler cavity are lined with high-strength membrane water walls, enhanced by turbulence-promoting flow channel optimisation to improve heat transfer. Combined with a dual-channel superheater isolation design and a cross-chamber spray cooling system, the boiler achieves precise thermal control of high-temperature flue gas, preventing issues such as overheating and corrosion. Compared to traditional designs, the cavity membrane wall boiler offers superior thermal stress relief and deformation resistance under high heat intensity. Its modular structure allows for easy installation and maintenance, while offering high compatibility with waste heat recovery units and flue gas treatment systems. The boiler adopts a chamber-type radiant heat transfer configuration with membrane water walls, integrating dual-channel superheater separation and cross-chamber spray cooling control. This enables accurate thermal management of high-temperature flue gas. Flow path optimization creates turbulent conditions that enhance heat exchange efficiency.
