Product overview

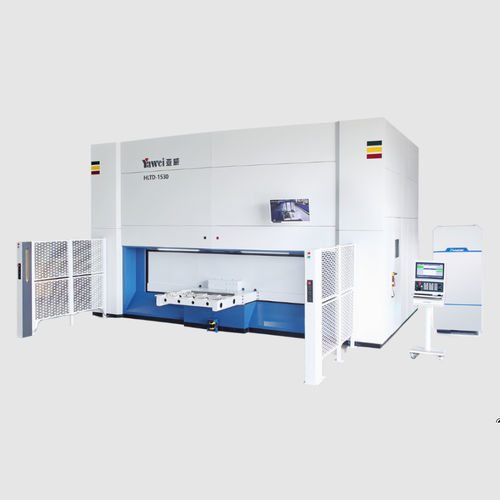

3D five-axis laser cutting machine designed for cutting three-dimensional metal workpieces, primarily to solve hole cutting and edge trimming of hot-formed parts.
Stability: High-rigidity cable-stayed cantilever structure ensures long-term high-speed, high-precision and stable cutting.
Safety: Machine protection meets CE international safety standards.
Diversification: Supports E-type and R-type positioners, mobile workbench and other loading/unloading configurations.

Product parameters
YDAC, YDGC 3D five-axis laser cutting machine
X axis stroke: 3000mm
Y axis stroke: 1500mm
Z axis stroke: 650mm
Rotating angle of C axis: N*360°
Rotating angle of A axis: ±135°
Q axis stroke: ±10mm
X/Y/Z axis max speed: 100m/min
X/Y/Z axis max acceleration: 1g
C/A axis max rotation speed: 120/120 r/min
C/A axis max rotation acceleration: 60 rad/s^2
X/Y/Z axis positioning accuracy: ±0.05mm
X/Y/Z axis positioning repeatability: 0.03mm
C/A axis positioning accuracy: 0.015°
C/A axis repeat positioning accuracy: 0.005°

Characteristics / Technical specifications

• Designed for cutting 3D metal workpieces; ideal for hole cutting and edge trimming of hot-formed parts
• High-rigidity cable-stayed cantilever structure for sustained high-speed, high-precision cutting
• Machine safety protection compliant with CE international safety standards
• Supports multiple loading/unloading configurations: E-type, R-type positioner, mobile workbench
• X axis stroke: 3000mm
• Y axis stroke: 1500mm
• Z axis stroke: 650mm
• C axis rotating: N*360°
• A axis rotating: ±135°
• Q axis stroke: ±10mm
• Max linear speed (X/Y/Z): 100m/min
• Max linear acceleration (X/Y/Z): 1g
• C/A max rotation speed: 120 r/min each
• C/A max rotation acceleration: 60 rad/s^2
• Positioning accuracy (X/Y/Z): ±0.05mm
• Positioning repeatability (X/Y/Z): 0.03mm
• C/A axis positioning accuracy: 0.015°; repeatability: 0.005°
