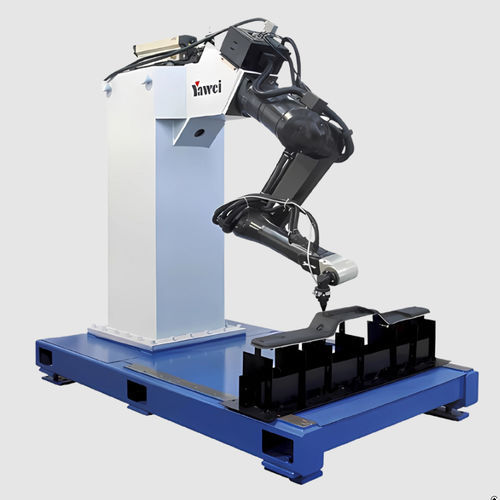

CO2 laser cutting system YDRCN3D laserfor metalprofiling
Add to favorites
Compare this product
Characteristics
- Technology
- CO2 laser, 3D laser
- Material
- for metal
- Associated function
- beveling, profiling
- Applications
- for industrial applications, for the automotive industry, for metal fabrication
- Configuration
- cantilevered, 5-axis
- Other characteristics
- high-precision, robotic, 3D
- X travel
Max.: 1,400 mm
(55.12 in)Min.: 0 mm
(0 in)- Y travel
Max.: 700 mm
(27.56 in)Min.: 0 mm
(0 in)- Z travel
Max.: 500 mm
(20 in)Min.: 0 mm
(0 in)- Laser power
Max.: 650 W
Min.: 0 W
- Repeatability
0.05 mm
(0.002 in)- Accuracy
0.1 %
Description
Product overview
The YDRCN 3D Robot CO2 Laser Cutting System is a robotic laser cutting solution designed for automated three-dimensional cutting and processing of metal workpieces in industrial production lines. It integrates a 5-axis robot with a CO2 laser source to perform complex contour and bevel cuts on parts requiring flexible handling.
Main components & features
Key parameters
Laser power: ≤650 W
Maximum workpiece size (L×W×H): 1400×700×500 mm
Number of robot axes: 5 axes
Robot repeat positioning accuracy: ±0.05 mm
Optical path type: Internal light guide
Cutting accuracy: ±0.10 mm
Applications
Technical specifications
The YDRCN 3D Robot CO2 Laser Cutting System is a robotic laser cutting solution designed for automated three-dimensional cutting and processing of metal workpieces in industrial production lines. It integrates a 5-axis robot with a CO2 laser source to perform complex contour and bevel cuts on parts requiring flexible handling.
Main components & features
- STAUBLI five-axis robot with built-in light guide for integrated beam delivery
- Rofin CO2 laser source
- Cantilever hanging structure for compact factory layout
- Optional external axis for extended work envelope and automation integration
Key parameters
Laser power: ≤650 W
Maximum workpiece size (L×W×H): 1400×700×500 mm
Number of robot axes: 5 axes
Robot repeat positioning accuracy: ±0.05 mm
Optical path type: Internal light guide
Cutting accuracy: ±0.10 mm
Applications
- Automotive industry: body parts, brackets, exhaust components
- Home appliance manufacturing: housings and structural components
- Mould and tooling industry: complex 3D profiles and trims
Technical specifications
- Brand: Jiangsu Yawei Machine Tool Co., Ltd.
- Model designation: YDRCN
- Alternate name (Chinese): YDRCN三维机器人CO2激光切割系统
- Laser brand: Rofin
- Robot brand: STAUBLI (five-axis, integrated light guide)
- Structure: Cantilever hanging; optional external axis
