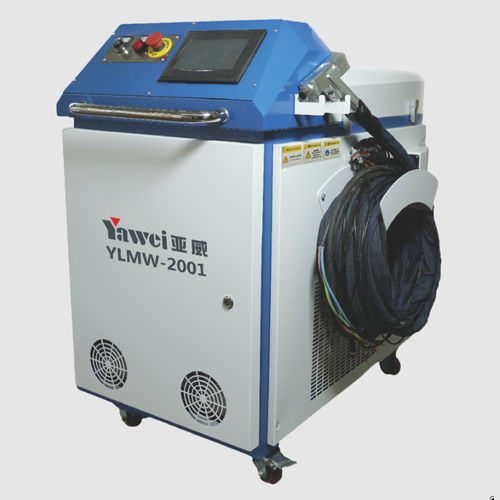

Fiber laser welding machine YLMW seriesmanual220V single phasecompact
Add to favorites
Compare this product
Characteristics
- Technique
- fiber laser
- Operational mode
- manual
- Power supply
- 220V single phase
- Other characteristics
- compact, water-cooled
- Power
1,500 W, 2,000 W, 3,000 W
Description
Overview
Available models
Technical specifications
- Handheld laser welding solution designed for industrial welding applications offering faster welding speed and higher efficiency compared to conventional welding methods.
- Lightweight, portable welding torch (torch weight ≤1.0Kg) for flexible on-site and production-line use.
- Compact structure and simple operation to reduce space requirements and simplify operator training.
- Equipped with laser optical-path protection for safer operation and reduced risk of stray emission.
- Modular configurations with multiple wire-feeding options to accommodate different materials and welding scenarios.
Available models
- YLMW-1501: Laser power 1500W; WOBBLE oscillating welding head; single wire feed; fibre length 10–15 m; focusing distance 150/200 mm; continuous/pulse modes.
- YLMW-2001: Laser power 2000W; WOBBLE oscillating welding head; single wire feed; fibre length 10–15 m; focusing distance 150/200 mm; continuous/pulse modes.
- YLMW-3001: Laser power 3000W; WOBBLE oscillating welding head; double wire feed; fibre length 10–15 m; focusing distance 150/200 mm; continuous/pulse modes.
Technical specifications
- Laser power: 1500W / 2000W / 3000W
- Laser wavelength: 1070–1080 nm
- Fibre length: Standard 10 metres, maximum support 15 metres
- Cooling method: Built-in industrial thermostatic water cooler
- Welding head: WOBBLE oscillating welding head (standard with wire filling device)
- Working mode: Continuous / Pulse
- Scope of oscillation: 0–5.0 mm
- Focusing distance: 150 / 200 mm
- Automatic wire feeder: Single wire feed (1501 / 2001); Double wire feed (3001)
- Wire diameter range: 0.8–2.0 mm
- Power requirement: AC220V / 50Hz
- Torch weight: ≤1.0 Kg
