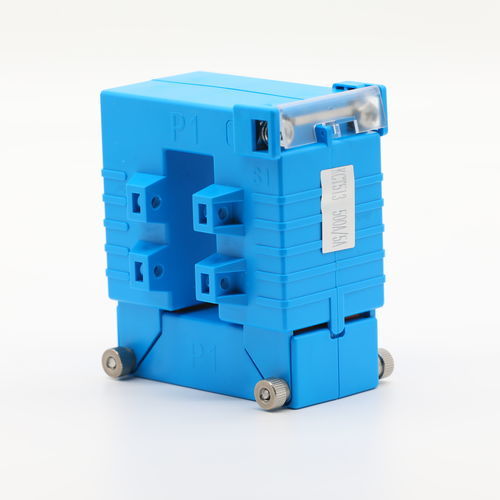

Current transformer KN
split-corefor electronicsindustrial

current transformer
current transformer
current transformer
current transformer
current transformer
current transformer
Add to favorites
Compare this product


Characteristics

Type
current
Configuration
split-core
Applications
for electronics, industrial, for energy meters, for industrial applications, protection, for electrical networks, for outdoor service, for railway applications, for photovoltaic applications, substation
Electrical characteristics
single-phase, low-voltage
Mounting
through-hole, plug-in
Norms
IEC, RoHS
Other characteristics
open type
Secondary voltage

Min.: 0 V

Max.: 3 V

0.3 V

Primary current

Min.: 0 A

Max.: 5,000 A

Secondary current

Min.: 0 A

Max.: 5 A

5 A

Frequency

Min.: 50 Hz

Max.: 60 Hz

Description

The JIANGYIN SPARK Busbar KN Series of split core current transformer are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary. Specifications Rated primary current: 100 to 5, 000A AC Rated secondary current: 5 or 1A AC Rated load: 1, 2.5, 5.0, 10 and 30VA Accuracy: 0.5, 1.0 and 3.0 class Rated short-time thermal current (Ith): 20In Rated dynamic current (Idyn): 2.5Ith Highest voltage for equipment (Um): 720V AC RMS Rated power-frequency withstand voltage: 3, 000V AC RMS Frequency range: 50/60Hz Operating temperature: -15 to 60° C Split core design, safer, easy to install and portable Accessories: Supplied with feet for base mounting if required Applications: Current, power, energy and monitoring devices Relay protection devices Power factor correction devices Available in 5 standard sizes Standard: IEC 60044-1 RoHS Directive-compliant
