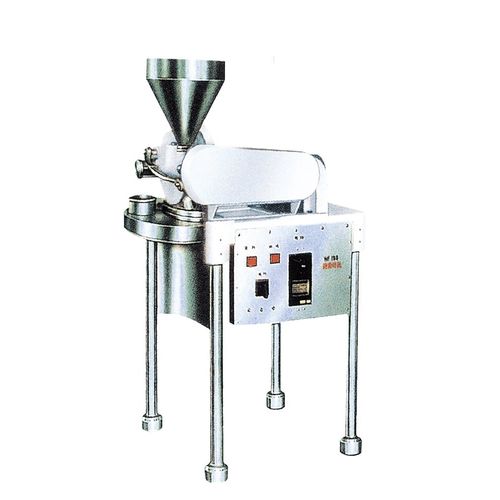

Hammer pulverizer CF seriesverticalhigh-speedstainless steel
Add to favorites
Compare this product
Characteristics
- Technology
- hammer
- Orientation
- vertical
- Other characteristics
- high-speed, stainless steel
- Sector
- for the food industry, for the pharmaceutical industry
- Rotational speed
6,800 rpm, 8,000 rpm, 10,000 rpm
(42,726 rad.min-1, 50,265 rad.min-1, 62,832 rad.min-1)- Output
Max.: 300 kg/h
(661 lb/h)Min.: 2 kg/h
(4 lb/h)- Motor power
1 kW, 2 kW, 8 kW
(1.36 hp, 2.72 hp, 10.88 hp)- Machine length
500 mm, 800 mm, 1,100 mm
(20 in, 31 in, 43 in)- Machine width
400 mm, 600 mm, 650 mm
(16 in, 24 in, 26 in)- Machine height
800 mm, 1,100 mm, 1,400 mm
(31 in, 43 in, 55 in)- Machine weight
85 kg, 250 kg, 380 kg
(187 lb, 551 lb, 838 lb)
Description
The machine is applied for the material pulverization of industries such as pharmaceutics, chemical and foodstuff, etc.
Working Method
As a hammer pulverizer, the machine, with cool water jacket in crushing chamber, utilizes high-speed rotary hammer to crush the raw material fed from feeding funnel and rotary conveyer. The whole machine, with easy structure, is made of stainless steel, thus to make the pulverized material meet the GMP requirement. The pulverizing chamber is easy to dismantle and cleaning.
