Hot air dryer

dry aircontinuous

Product Description

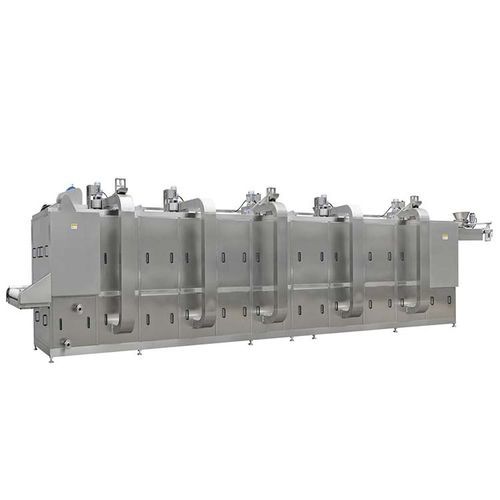

The 5-layer, 10 m continuous mesh-belt dryer is designed for controlled drying of sticks, flakes, granules and similar snack and food products. The unit features adjustable belt speed, inverter-controlled drying time, and selectable heating sources (electric infrared tubes, gas, oil or steam with branded burners such as Baltur). Construction is in stainless steel 304. The machine is composed of a drying system, heating system, control system and dehumidification system.

Application Display
Used for moisture removal, grain and ingredient drying, and extending shelf life of food products. Frequency-conversion control allows fine adjustment of drying speed; temperature and residence time are adjustable to meet product-specific drying profiles. Suitable for non-fried puffed snacks, powdered ingredients, breadcrumbs, pet food and protein-rich tissues where uniform drying is required.

Product Advantages

• Adjustable mesh-belt transmission speed with accurate, reliable temperature control for consistent results.
• Double-pitch roller chain and sprocket drive eliminate dead points and ensure stable operation.
• Movable bottom drawer enables easy removal of residues and facilitates cleaning and fire prevention.
• Adaptable to multiple heat sources; uniform heat distribution reduces local overheating and supports energy-efficient operation.

Specifications

• Total power: 0.75 kW (circulation fan) ×4 + 0.11 kW + 1.1 kW (drive motor) + 2.2 kW (air supply fan) = 6.21 kW
• Dimensions: 10800 × 2100 × 2600 mm
• Drying time: 50–120 min (adjustable)
• Conveyor width (vibration width): 1200 mm
• Heating temperature: 60–70 °C
• Layer thickness (at bulk density 700 kg/m³): 0.7–1.6 cm
• Capacity: 600 kg (fortified rice with fluidized bed), 300 kg (pellet)

Technical specifications

• Material: Stainless steel 304
• Heat source options: Electric (infrared tubes), gas, steam, oil (compatible with international-brand burners)
• Adjustable belt speed and frequency-conversion controlled drying speed
• Components: drying system; heating system; control system; dehumidification system
• Power breakdown and total power: see Specifications above (total 6.21 kW)
• Overall dimensions and capacity: see Specifications above
