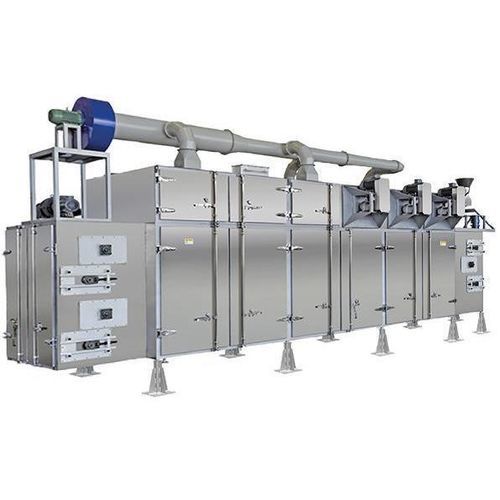

Hot air drying system

continuousfor the food industrydehumidifying

Product overview
The Cross Circulation Dryer CCD-200 is a continuous industrial dryer engineered for pet food, compound feed, pelleted products and puffed snacks. It combines a material distribution system, hot-air cross circulation and a negative-pressure dehumidification unit with chain-plate conveyors to deliver uniform, low-temperature drying while minimising product damage and agglomeration.

Main components / systems

• Material distribution: sealed hopper and swing distributor for even loading onto chain-plate conveyors; venting and buffering to reduce particle breakage.
• Hot-air circulation: multiple heat exchangers and circulation fans using two-way cross-flow to accelerate moisture removal.
• Dehumidification: negative-pressure dehumidification to lower air humidity, avoid mold/odor and protect finished product quality.
• Transmission & drive: frequency conversion (VFD) control of chain-plate conveyors with side baffles and transition plates to regulate residence time and flow.

Applications
Designed for drying extruded pellets, puffed aquatic and pet feeds, baked snacks and dry-processed vegetable protein. Suitable for granular, lumpy and light-density puffed products where uniform moisture content and pellet appearance are critical.

Benefits

• Uniform drying: cross circulation ensures even hot-air contact and consistent moisture reduction.
• Product protection: low-temperature drying and gentle conveying minimise thermal damage and breakage.
• Energy efficiency: closed-loop hot-air circulation and dehumidification improve heat utilisation.
• Process control: adjustable frequency drive enables precise control of drying time and temperature profile.
• Hygienic construction: product-contact parts in stainless steel for corrosion resistance and easy cleaning.

Technical specifications

• Primary modules: material distributor, hot-air circulation, moisture removal (dehumidifier), drive and transmission systems.
• Airflow: internal circulation hot air with two-way cross-flow assisted by dehumidification fans.
• Conveying: chain-plate conveyors with side baffles; multi-layer or single-layer configurations available.
• Control: frequency conversion (VFD) for adjustable speed, temperature and drying time.
• Materials: stainless steel contact parts (SUS) for cleaning and corrosion resistance.
• Typical uses: pet food (pellets, puffed snacks), feed, aquatic feed, dry-processed ingredients.
• Quantity: 1 unit. Availability and capacity to be specified per order.
