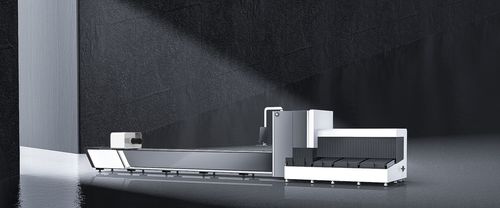

Fiber laser cutting machine T series

for metaltubeautomated loading/unloading

Overview
The Bodor T Series is a professional tube laser cutting machine designed for high-efficiency fiber laser metal tube processing. It delivers industry-leading single-tube processing efficiency (about 20% faster than other cutting techniques) and supports cutting of various tube shapes including round, rectangular and irregular profiles. The series emphasizes ultra-fast cutting, high precision and intelligent parameter adaptation to optimize throughput and cut quality.

Key Selling Points

• Efficiency Master: processing efficiency of a single tube ~20% faster than other cutting techniques.
• High-Speed Cutting: capable of operating with laser power up to 6 kW to complete projects quickly.
• High Precision: Bodor laser heads and process control deliver clean, accurate cuts across varying thicknesses.
• Versatile Applications: supports round, rectangular and irregular-profile tubes.
• Triple Amplification architecture for enhanced cutting performance.
• Ultra-fast automatic centering: 1 second centering capability (example metric: 0.26 s for rectangular tubes) to reduce idle time.
• High dynamic capability: max loading speed and chuck rotation optimized for production (see technical specs).
• Composite roller support: combined follow-up rollers, intelligent loading centering and bionic U-shape roller for stable material support.
• Servo-flipping unloading: reduces workpiece movement during cutting and enables automatic material sorting and unloading.
• Intelligent adaptation: automatic selection and matching of parameters such as loading speed, chuck rotation speed and clamping force for optimal cutting conditions.
• Optional features: weld seam identification (automatic detection of weld seam positions to ensure precise alignment and avoidance).

Caractéristiques / spécifications techniques

• Denomination commerciale: T Series
• Processing efficiency: approximately 20% faster per single tube vs other cutting techniques
• Maximum laser power: up to 6 kW
• Max. loading speed: 160 m/min
• Max. chuck rotation speed: 175 r/min
• 1 Second Centering (example): 0.26 s for rectangular tubes
• Supported tube shapes: round, rectangular, irregular profiles
• Material handling: composite rollers (follow-up rollers, intelligent loading centering, bionic U-shape roller)
• Unloading: servo-flipping unloading with automatic material sorting
• Control: intelligent adaptation of loading speed, chuck rotation speed and clamping force
• Optional: Weld seam identification for automatic weld seam detection and avoidance
