Fiber laser cutting machine Q0 Pro

for metaltubeservo-driven

Overview

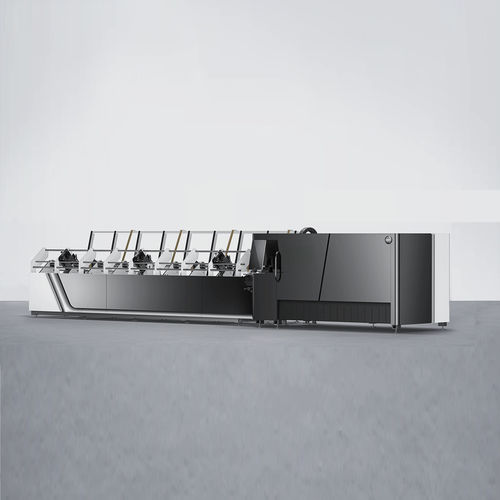

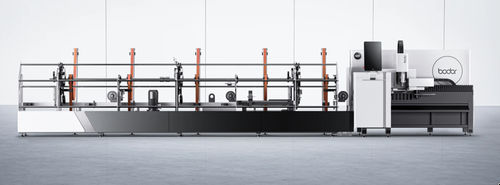

The Bodor Q0 Pro is a fiber laser cutting machine specifically configured for efficient processing of small-diameter tubes. It combines automatic loading, servo-driven double-sided clamping and a fixed-diameter chuck system to minimize manual handling and maximize material yield.

Key selling points

• High processing efficiency: integrated automatic loading and optimized feed/clamp sequence for continuous small-tube production.
• Maximum material utilization: minimum tail length of 55 mm reduces scrap and lowers part cost.
• No manual intervention: double-sided servo clamping enables accurate one-time tube fixation and hands-free operation.

Performance highlights

• Max. rotation speed: 180 r/min
• Max. loading speed: 120 m/min

Automatic loading
Standard automatic loading unit reliably feeds round, square and rectangular tubes within the typical diameter range Ø20–60 mm. The system stabilizes, aligns and sequences tubes for uninterrupted processing.

Chuck & collet system
The machine uses fixed-diameter tube chuck collets designed to avoid surface damage. Collets and chucks are exchangeable with a quick-replacement procedure of approximately 5 minutes. Supported cross-sections include:

• Round tubes
• Square tubes
• Rectangular tubes
• Waist-shaped tubes
• Elliptical tubes

Applications

• Production of small tubular parts for furniture, HVAC components, window/door profiles, kitchen and sanitary frames, and general mechanical fabrication.

Technical specifications

• Model: Q0 Pro
• Brand: Bodor
• Machine type: Small-tube fiber laser cutting machine
• Max. rotation speed: 180 r/min
• Max. loading speed: 120 m/min
• Automatic loading: standard (supports Ø20–60 mm)
• Clamping: double-sided servo clamping (one-time accurate clamping)
• Collet type: fixed-diameter chuck collets (no tube surface damage; ~5 min replacement)
• Minimum tail length: 55 mm
• Supported tube profiles: round, square, rectangular, waist-shaped, elliptical
