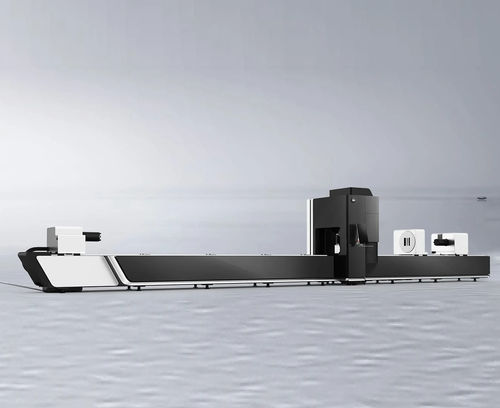

Fiber laser cutting machine M series

for metaltubefor industrial applications

Overview
Flagship tube laser cutting machine from Bodor. The M Series introduces a four-chuck synchronous dual-process architecture enabling simultaneous cutting, loading and unloading for continuous, high-efficiency tube processing. Designed for heavy-duty tube tasks, the M Series adapts to diverse processing scenarios and minimizes material waste.

Key Selling Points

• Synchronous Dual Process with Four Chucks for continuous operation and high throughput.
• No Manual Intervention: 4-chuck mechanism enables hands-free, high-precision cutting, improving safety and reducing labor costs.
• Strong Loading Capacity: Designed for heavy-duty processing; the M5 variant supports very large diameters (see specifications).
• 0 Excess Material Waste: Four-chuck structure enables moving material forward or backward to cut the last section of any tube length, achieving near-zero scrap.
• Intelligent Cutting Modes: Automatic pairing of the chucks and automatic switching of processing modes to suit different working conditions.
• Ultra-Large Cutting Range: Square-round structure chuck allows cutting round tubes with a maximum diameter equal to the maximum side length of square tubes, offering flexible processing options.
• Over-edge Protection for Tubes: Self-developed servo-following sensors and path-avoidance algorithms detect obstacles at tube edges and pre-plan avoidance routes to reduce laser-head collision risk.
• Weld Seam Identification (Optional): High-sensitivity ultra-clear camera with AI self-learning function to precisely identify weld seams and enable cutting avoidance.
• Automation & Integration: Compatible with Bodor automatic loading/unloading solutions and IoT platforms (BodorPlus / BodorMES / BodorHUB) for enhanced production management.
• 5-Year Warranty Program available (BodorPower, BodorThinker, BodorGenius tiers).

Simultaneous Cutting, Loading and Unloading
The M Series can initiate loading for a new tube while cutting is ongoing or finish unloading a previous tube concurrently with cutting. This overlapping workflow delivers a smoother, much higher throughput processing experience.

Four-Chuck Processing
Four chucks and multiple channels allow flexible intelligent pairing and mode switching to adapt to complex production scenarios. The design enables moving the material forward or backward when cutting the final section, enabling material utilization optimization and effectively eliminating leftover scrap.

Automation & Software

• Supports optional automatic devices (M-Loader, M-Trans, K-Loader, iLoader variants) for auxiliary loading, automatic loading and full automation.
• IoT and MES integration via BodorPlus, BodorMES and BodorHUB for data collection, remote monitoring and factory-level production management.

Warranty & Service
Bodor offers a 5-year warranty program (different tiers: BodorPower, BodorThinker, BodorGenius) to extend support and after-sales care.

Caractéristiques / spécifications techniques

• Brand: Bodor
• Product family / Series: M Series
• Commercial model name: M Series
• Processing type: Fiber laser tube cutting (synchronous dual process)
• Chuck architecture: Four-chuck mechanism; square-round structure chuck (supports square tubes and round tubes with max diameter equal to the max side length of square tubes)
• M5 diameter capability: supports tube diameters up to 530 mm (M5 model)
• Operation modes: Simultaneous cutting, loading and unloading; intelligent pairing and automatic mode switching for multiple scenarios
• Waste reduction: Designed for true 0-excess-material cutting using four-chuck forward/backward material movement
• Edge protection: Servo-following sensors and path-avoidance algorithms to detect tube-edge obstacles and plan avoidance
• Optional features: Weld seam identification (high-sensitivity camera + AI self-learning), automatic loading/unloading devices
• Automation compatibility: Works with Bodor automatic devices (M-Loader, M-Trans, K-Loader, iLoader families) and BodorPlus IoT ecosystem
• Warranty: 5-year warranty program available
• Typical use cases: Heavy-duty tube cutting, high-throughput industrial tube fabrication, zero-waste cutting requirements
