Industrial goods lift

platformcustom-madefor heavy loads

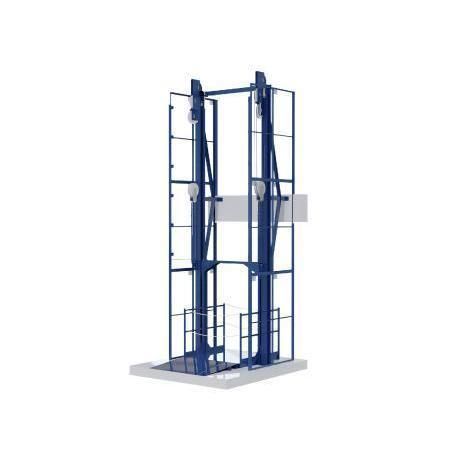

The VRC straddle lift features a carriage positioned between two guide columns, effectively distributing the load weight evenly along both columns. Compared to a cantilever configuration, this design offers a higher load capacity and a larger carriage platform while also withstanding greater rollover forces generated during loading and unloading. The straddle layout supports both C-loading (loading and unloading from the front) and Z-loading (loading and unloading from opposite sides), making it ideal for applications without space constraints and without the need for unlimited load height. - Max. Lifting Capacity: 1000KG - Carriage Size: 2.5m x 2.5m - Max. Travel Height: 10m - Speed: 6m/min standard - Power Supply: 230V/3P, 230V/1P, 460V/3P, or 380V/3PH - Load/Unload Patterns: “C”, “Z” or pass through pattern - Mounting: Surface or Pit Note: The above parameters are for reference only, all products can be customized 1. Illuminated Operator Controls at Each Level – Equipped with illuminated control panels at each level for enhanced visibility and ease of operation. 2. Simplified Installation – Optimized design for quick and easy on-site installation. 3. Quiet and Efficient Operation – High-performance drive system ensures low noise and energy-efficient performance. 4. Full-Height Carriage Enclosures – Provides full-height safety enclosures for secure and stable material handling. 5. Pit or Surface Mount Options – Can be installed in either a pit-mounted or surface-mounted configuration to suit different site requirements. 6. Factory-Tested for Quality Assurance – Rigorously tested before shipment to ensure reliable performance and durability. 7. Soft Start/Soft Stop Operation (VFD) – Variable Frequency Drive (VFD) enables smooth acceleration and deceleration, reducing impact and extending equipment lifespan.
