Automatic goods lift

motorizedindustrialfor warehouse

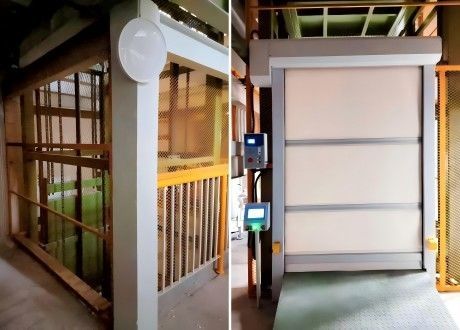

This Z-type Vertical Reciprocating Conveyor (VRC) lift is specifically engineered for the lithium battery industry, ideal for vertical transportation of bulk raw materials such as cathode and anode powders, chemical substances, and other heavy-duty loads. It features high load capacity, precise positioning, and a Z-flow layout for efficient, safe, and automated multi-level material handling with minimal manual intervention. - Max. Lifting Capacity: 3000KG - Carriage Size: 1500*1500*2100mm - Max. Travel Height: 12m - Speed: 6m/min - Power Supply: 230V/3P, 460V/3P, or 230V/1P - Load/Unload Patterns: “Z” pattern - Number of Levels: 3 Stops - Note: The above parameters are for reference only, all products can be customized Features: 1. Flexible Layout, Pit-Free Installation Platform height as low as 300mm with a small ramp at the ground-level entry/exit—no need for a foundation pit, ideal for existing factory environments. 2. Multi-Level Stop & Precise Positioning Supports three-level precise docking, equipped with a high-stability deceleration system to ensure safe and efficient vertical transport. 3. Strict Material Selection & Industrial-Grade Components No exposed parts use copper or zinc; paint is free from copper, iron, or zinc elements. Standardized color scheme: carbon steel platform in PANTONE 574c, enclosure in PANTONE 1375c, and control cabinet in RAL7035. Key components from SMC, Schneider, Omron, Mitsubishi, Kunlun Tongtai, and Delta. 4. High Protection Standards for Harsh Environments Motors, control cabinets, and roller doors meet IP55 protection level; motors comply with F-class insulation and IE2 energy efficiency, ensuring long-term stability. 5. Safety Design for Personnel and Materials The lift car is surrounded by 1100mm high safety rails, preventing ton bags from tipping or shifting during operation.
