Pallet goods lift

for conveyorfor heavy loadshandling

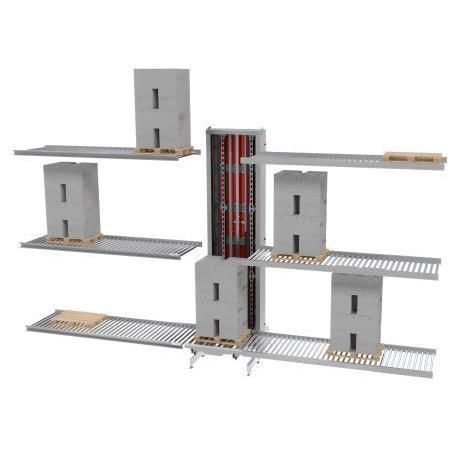

The Heavy-duty Vertical Pallet Conveyor is a robust and stable vertical conveying system designed for automated pallet handling. It can lift pallets weighing up to 1,500 kg to heights of up to 10 meters, with a maximum throughput of 100 pallets per hour. Featuring a compact footprint and modular design, it supports three-sided infeed/outfeed and multi-channel sorting. The lift can be equipped with roller or chain conveyors and is easy to integrate into various automated systems. - Standard Parameters: - Lowest infeed/outfeed position: 500mm - Highest infeed/outfeed position: 10,900mm - Max. Travel height: 10m - Max. Product weight: 1500kg - Max. Product size: 1,300 x 1,250mm - Max. Throughput: 100 p/hour - Features: - Minimum footprint - Right-angle arrangement also possible - Suitable for multilevel vertical sorting - Pallets, racks etc. up to 1250 kg. - Robust and low maintenance - Solid steel construction - Drop down protection included - Drive motor at floor level - No lubrication or chain tensioning required - Low noise The Heavy-duty Vertical Pallet Conveyor does its job in almost any conceivable situation. Not only is the product lift suitable for left or right side product infeed or outfeed, when using a suitable product carrier also via the front. For selecting the configuration that suits your situation best, you simply follow the road map in which the various possibilities are clearly compared next to one another. By means of the adjacent drawing you select the required in- and outfeed situation.
