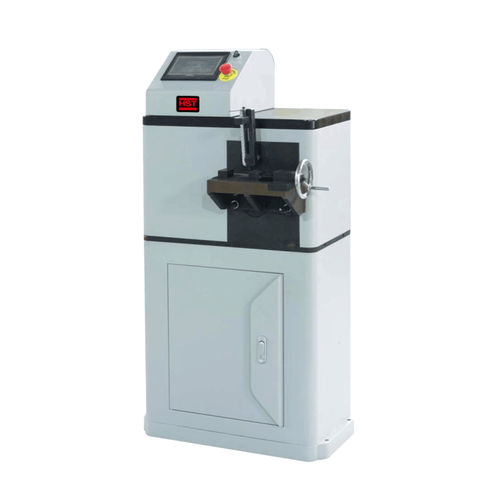

Bending testing machine JWJ-10

manualfor wireelectric

It is mainly used for repeated bending test of metal wire and testing performance and defect of bearing plastic deformation at the process of bending metal wire repeatedly. Application This testing machine is mainly used for repeated bending test of metal wire and testing performance and defect of bearing plastic deformation at the process of bending metal wire repeatedly.You can operate on digital display screen and it shows bending times. It can also process sheet metal bending test after using sheet clamping device. Features By changing different specification clamping jaws that can do a variety of specifications of materials bending test. Stepless speed test. Equipment stable performance, compact structure, reliable quality. Simple, bending frequency digital display. 2.5 Low noise running smoothly, reliable long life, reasonable design, easy maintenance. Main technical parameters Sample Diameter(mm) - Ф1-Ф10 Sample Length(mm) - 150-200 Bending Angle - ±90° Bending Speed（times/min) - ≤ 60 Numeration Range(time) - 0-9999 Motor Power - 1.5Kw External Dimensions(mm) - 600×330×1000 Tester Weight - 210 Kg
